How To Solder Enameled Copper Wire

Reliable soldering of magnet wire remains a notoriously stubborn bottleneck in both rapid prototyping and scalable electronics manufacturing. Improper technique frequently leads to cold joints, mechanically weakened conductors, or microscopic thermal damage. Defective enamel removal accounts for disproportionately high failure rates in PCB fly-wiring, intricate transformer repairs, and advanced sensor manufacturing. Evaluating the right material supplier and implementing standard operating procedures (SOPs) drastically reduces labor time and prevents costly field failures. This comprehensive guide covers critical metallurgical risks, evaluated insulation removal frameworks, and application-specific soldering techniques. You will discover robust procurement strategies designed to eliminate frustrating production inconsistencies entirely. By standardizing these practical approaches, engineering teams can rapidly elevate assembly reliability and streamline their strict quality assurance protocols.

Key Takeaways

• Material Trumps Method: Solderability depends entirely on the wire's thermal insulation class (e.g., Polyurethane is solderable; Polyesterimide is not).

• Avoid Copper Dissolution: Lead-free solder at high temperatures (>400°C) will rapidly dissolve ultra-fine copper wires (>36 AWG).

• Toxicity Warnings: Never rely on community "hacks" like melting Aspirin tablets to strip enamel, as this produces highly toxic off-gassing.

• Visual QA Standards: A successful joint must be shiny and smooth; dullness indicates trapped organic contaminants from melted enamel.

Evaluating Material Substrates: Solderable vs. Non-Solderable Enameled Copper Wire

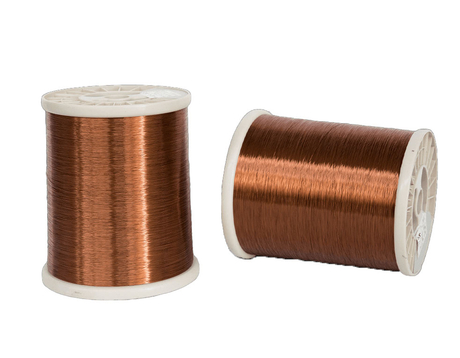

Most soldering difficulties originate from a fundamental material mismatch. Manufacturers often choose an incorrect enamel thermal class for their specific production technique. You must match the insulation type to your intended stripping method. Sourcing the right Enameled Copper Wire dictates the success of your entire workflow.

Solderable Insulation (Low-Thermal Class)

Low-thermal class wires feature polyurethane-based coatings. They are typically rated around 155°C. Engineers design them specifically for direct soldering without requiring any mechanical pre-stripping. When heat hits the coating, it melts rapidly. The melted enamel then acts as a localized flux to clean the underlying metal.

• Best for: PCB rework, prototype fly-wiring, and delicate micro-electronics.

• Common Mistake: Scraping these wires damages the delicate copper base unnecessarily. You should apply heat directly.

Non-Solderable Insulation (High-Thermal Class)

High-thermal class insulation resists extreme heat. These heavy-build coatings often rely on robust polyesterimide or polyamide-imide structures. Standard soldering irons will not dissolve this coating even at 400°C. The intense heat will merely scorch the outer layer and create a charred mess.

• Best for: Power inductors, high-voltage transformers, and heavy industrial motor windings.

• Requirement: You absolutely must use mechanical scraping or chemical stripping prior to tinning them.

4 Standard Operating Procedures (SOPs) for Enamel Removal and Tinning

Establishing clear SOPs prevents operators from improvising dangerous or ineffective techniques. Follow these standardized methodologies based on your production volume and wire type.

1. Thermal "Boil Away" Method (High Volume / Solderable)

   Mechanism: You use a dedicated solder pot or a heavily tinned iron tip running between 370°C and 400°C. Immerse the wire tip directly into the molten solder pool.

   Visual Indicator: Watch closely for a distinct "bubble boiling" effect inside the liquid solder ball. This bubbling visually confirms the enamel is actively vaporizing. Once bubbling stops, the wire is fully tinned.

   Tool Maintenance: Molten enamel rapidly oxidizes and severely contaminates soldering iron tips. Operators must drop iron temperatures to 300°C immediately after tinning. They must then aggressively clean the tip using brass wire sponge.

2. Mechanical Stripping (Heavy-Duty / Non-Solderable)

   Mechanism: You use ultra-fine sandpaper or specialized rotary mechanical wire strippers. They physically shave the insulation to expose the bare copper base.

   Risk Profile: Keep this method strictly reserved for thick wires (typically larger than 24 AWG). Using mechanical force on fine wire causes invisible micro-fractures. They eventually lead to long-term vibrational fatigue failure in the field.

3. Flame & Flux Method (Field Repair / Prototyping)

   Mechanism: You apply a blue-flame torch to flash-burn the stubborn insulation. Wipe away the resulting carbon soot immediately with a dry cloth. Then, apply high-activity liquid flux rapidly to prevent severe copper oxidation before soldering.

4. Chemical Stripping (Precision Manufacturing)

   Mechanism: You utilize industrial, highly active acidic flux or specialized commercial stripping salts. The chemical agent dissolves the polyesterimide structure safely.

   Requirement: This demands strict fume extraction ventilation. You must perform post-solder neutralizing washes. Failing to wash the joint invites ongoing, catastrophic corrosion on the PCB.

Application-Specific Frameworks for Complex Wire Types

Standard SOPs often fail when encountering extreme wire gauges or specialized hybrid materials. You must adapt your approach to handle complex physical constraints.

Ultra-Fine Wires (>36 AWG) and the "Copper Dissolution" Risk

The Threat: Hair-thin wires pose a unique metallurgical challenge. High-temperature, lead-free solder acts aggressively. It will literally "eat" and dissolve the ultra-fine copper base within seconds. Operators often pull the wire out of the solder pot only to find nothing remains.

The Fix: Drop your operating temperatures to a strictly monitored 350°C–370°C. Minimize your dwell time to just one or two seconds. Alternatively, pre-tin the wire using leaded solder or low-temp solder paste (around 180°C) before final structural integration. You might also consider mechanical crimping as a high-reliability alternative.

Nylon-Woven Headphone and Audio Cables

The Threat: Manufacturers often braid Kevlar or nylon mesh together with micro-enameled strands for tensile strength. Attempting to manually unravel this protective nylon mesh causes severe breakage. You will destroy the delicate copper underneath before you even begin soldering.

The Fix: Cut the wire bundle completely flat. Do not try to separate the strands. Flood the target pad and the wire end heavily with high-activity flux. Apply heat directly to the bundle using a tinned iron. The non-conductive nylon simply melts. It floats harmlessly to the surface of the solder bead as an organic impurity. This phenomenon allows clean capillary wicking of the copper beneath.

Heavy-Duty Variac/Transformer Winding Splices

The Threat: Bumpy solder joints on transformer windings cause major mechanical issues. They can physically shatter sliding carbon brushes as the mechanism moves across the coil surface.

The Fix: Mechanically strip the broken ends completely. Splice them using a strong wrap and apply rosin-core solder. After cooling, file the resulting joint until it sits perfectly flat. You must perform mandatory resealing. Apply a clear insulating varnish over the filed joint. This critical step prevents dangerous turn-to-turn short circuits inside the tightly packed winding.

Quality Assurance, Inspection, and Avoiding Microscopic Defects

Catching defects early prevents system-level failures. You need strict inspection criteria to validate the integrity of every enameled wire connection.

Visual Acceptance Criteria

A pass/fail visual inspection should always look for a "shiny and smooth" finish. The solder must flow seamlessly around the entire circumference of the stripped wire.

Dark spots, dullness, or rough textures serve as major warning signs. They clearly indicate the organic enamel layer was not fully purged. This melted plastic remains trapped inside the joint. It creates a weak, high-resistance connection prone to heating under load.

Electrical and Safety Validation

Basic continuity testing via a standard multimeter remains insufficient for industrial applications. A multimeter uses very low voltage and will often show continuity even through a heavily degraded joint.

For windings and power electronics, you must implement rigorous checks. Implement Hi-Pot (High Potential) insulation testing prior to power-up. This applies high voltage to ensure no adjacent enamel was structurally compromised or cracked during the intense soldering process.

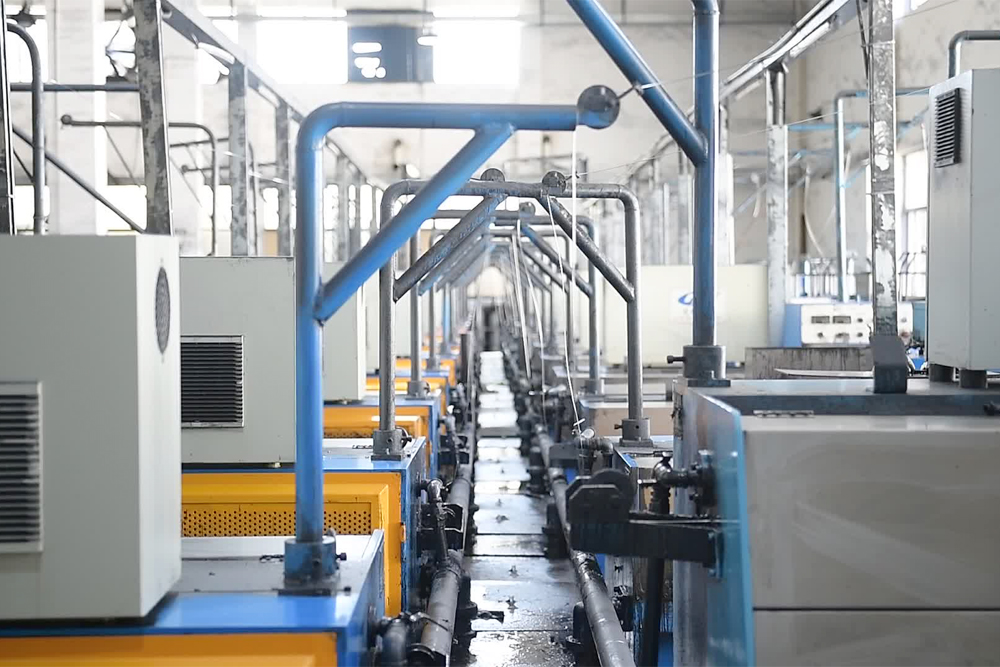

Scaling Production: Partnering with a Great Plated Wires Supplier

Continually fighting poor solderability on the assembly line signals a deeper operational problem. It usually points directly to poor raw material sourcing. Shifting from manual band-aid fixes to robust supply chain solutions creates permanent improvements. You cannot fix fundamentally bad materials with better manual techniques.

To secure consistent assembly, you need to partner with an Enameled Copper Wire great plated wires supplier. When evaluating a new manufacturing partner, scrutinize these three crucial criteria.

• Consistency in Enamel Thickness: Uneven insulation yields highly unpredictable "boil away" times. One batch might take two seconds to melt, while the next takes five. This variance causes automated wave or dip soldering lines to produce massive defect rates.

• Accurate Thermal Tolerances: The supplier must accurately categorize their wire spools. They need to clearly separate directly solderable polyurethane variants from those requiring mechanical stripping. Ambiguous labeling destroys manufacturing efficiency.

• Substrate Purity: High-grade copper significantly reduces the risk of internal oxidation. It lowers the chance of trace impurities interfering with the crucial wetting action required by modern lead-free solder profiles.

By demanding these material standards, your production lines will experience fewer bottlenecks. Operators will spend less time wrestling with stubborn insulation and more time finalizing high-quality electronic assemblies.

Conclusion

Soldering enameled copper wire stands as a demanding metallurgical challenge. It goes far beyond simple manual skill. Your long-term success requires perfectly matching the heat profile to the exact wire gauge and thermal insulation class. Remember to avoid extreme temperatures on ultra-fine wires to prevent copper dissolution. Rely on visual inspections to ensure perfectly shiny joints free of trapped organics. Finally, take time to audit your current wire inventory. If your operators constantly struggle to tin wires efficiently without causing structural damage, act immediately. Re-evaluate your material specifications and consult your supplier for a strictly solderable alternative.

FAQ

Q: Why is my 400°C soldering iron not melting the enamel?

A: You are likely using a high-temp thermal class wire (like polyesterimide) designed for power transformers. This type requires mechanical scraping or specialized chemical stripping; heat alone will only scorch it.

Q: Is it safe to use Aspirin to strip enameled copper wire?

A: No. While historically used as a DIY high-activity flux, heating acetylsalicylic acid releases highly toxic, noxious gases that are hazardous to respiratory health. Stick to commercial rosin or acid-based fluxes.

Q: Can I use a lighter to burn off the enamel?

A: Yes, but only in a pinch. It leaves behind a heavy layer of carbon soot and rapidly oxidizes the copper. You must aggressively wipe the wire and immediately flood it with flux to achieve a viable solder joint.
