Did you know that the choice of enameled wire can make or break an electrical system's performance? Enameled wires, like 155° Polyurethane and 200° Polyester-imide, are crucial for insulation and durability. Selecting the right type is vital for specific applications. In this article, you'll learn about their differences and how to choose the best one for your needs.

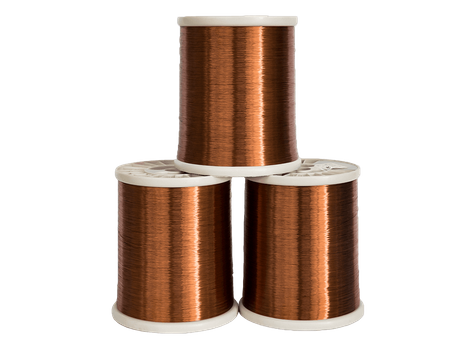

155° polyurethane enameled wires consist of copper or aluminum conductors coated with a thin layer of polyurethane enamel. This enamel acts as an insulating layer, protecting the conductor from electrical shorts and environmental damage. The "155°" rating refers to the maximum continuous operating temperature of 155 degrees Celsius that the wire insulation can withstand without degradation. Polyurethane enamel is a polymer known for its flexibility and good dielectric properties, making it a popular choice for many electrical applications.
Thermal Rating: Suitable for continuous use up to 155°C, providing reliable insulation under moderate heat conditions.
Flexibility: The polyurethane coating is flexible, allowing easy bending and routing in compact or intricate electrical assemblies.
Dielectric Strength: Offers solid electrical insulation, preventing short circuits and maintaining signal integrity.
Chemical Resistance: Moderate resistance to oils, solvents, and abrasion, though less robust than some higher-temperature coatings.
Adhesion: Strong bonding to the conductor ensures durability during winding or handling.
Thickness: The enamel layer is typically thin, balancing insulation needs without significantly increasing wire diameter.
155° polyurethane enameled wires are widely used where moderate temperature resistance and flexibility are crucial. Common applications include:
Motors and Transformers: Used in winding coils where moderate heat generation occurs.
Consumer Electronics: Suitable for internal wiring in devices that do not exceed the 155°C limit.
Automotive Components: Applied in electrical parts that operate under typical engine temperatures.
Household Appliances: Found in wiring for devices like fans, heaters, and small motors.
Industrial Equipment: Used in machinery where moderate mechanical stress and temperature are expected.
These wires are favored in industries requiring reliable insulation combined with flexibility and cost-effectiveness. They offer a balanced performance for many standard electrical tasks without the higher expense of premium insulation types.
Note: When selecting 155° polyurethane enameled wires, consider the operating temperature range carefully to avoid insulation failure in high-heat environments.
200° polyester-imide enameled wires feature conductors, usually copper or aluminum, coated with a polyester-imide enamel insulation. This enamel is a high-performance polymer combining polyester and imide groups, offering excellent thermal and chemical stability. The "200°" rating indicates the wire insulation withstands continuous operating temperatures up to 200 degrees Celsius without losing integrity. This makes it suitable for demanding electrical environments. The polyester-imide coating forms a tough, durable layer that protects the conductor from heat, moisture, and chemical exposure.
Thermal Resistance: Rated for continuous use at 200°C, it performs reliably under high heat.
Electrical Insulation: Offers superior dielectric strength, reducing risk of electrical shorts or breakdowns.
Chemical and Solvent Resistance: Highly resistant to oils, solvents, and harsh industrial chemicals, ensuring durability.
Mechanical Strength: Strong adhesion to the conductor and robust enamel layer resist abrasion and mechanical stress.
Flexibility: Though slightly less flexible than polyurethane, it still allows for efficient winding and routing.
Longevity: Maintains insulation properties over long periods, even in harsh conditions.
Thickness Options: Available in various enamel thicknesses to meet different insulation and space requirements.
200° polyester-imide enameled wires are widely used where higher thermal endurance and durability are crucial. Typical applications include:
Aerospace: Ideal for wiring in aircraft systems exposed to high temperatures and vibration.
Automotive Electronics: Used in engine control units, sensors, and motors operating under elevated heat.
Electric Motors and Generators: Suitable for winding coils in high-performance motors where heat is a factor.
Industrial Machinery: Applied in equipment requiring robust insulation against heat, chemicals, and mechanical wear.
Transformers and Power Supplies: Ensures reliable insulation in devices that generate heat during operation.
High-Voltage Systems: Provides dependable insulation for electrical components exposed to high voltages.
This wire type is preferred in industries demanding long-lasting performance under thermal and mechanical stress. It balances heat resistance, electrical insulation, and chemical durability, making it a versatile choice for advanced electrical systems.
Note: When selecting 200° polyester-imide enameled wires, consider their slightly reduced flexibility compared to polyurethane types, especially for tightly wound coils or compact assemblies.
When comparing 155° polyurethane and 200° polyester-imide enameled wires, temperature resistance is a key differentiator. The 155° polyurethane wires operate safely up to 155°C continuously. This makes them suitable for environments with moderate heat but limits their use in high-temperature applications. The polyurethane enamel offers good flexibility and insulation but starts degrading beyond its temperature threshold, risking insulation failure.
On the other hand, 200° polyester-imide wires withstand continuous temperatures up to 200°C. This higher rating means they maintain their insulating properties and mechanical integrity even under intense heat. The polyester-imide enamel is chemically stable and resists thermal breakdown, making it ideal for harsh conditions such as aerospace or heavy industrial machinery.
Thermal stability directly influences the wire’s performance and lifespan. Wires operating near or beyond their temperature limits experience faster insulation breakdown, leading to short circuits or electrical failures. The 155° polyurethane wires perform well in typical applications but may degrade faster in heat-intensive environments, shortening their service life.
Conversely, 200° polyester-imide wires offer enhanced longevity under thermal stress. Their insulation resists heat-induced cracking and chemical attack, ensuring consistent electrical performance over time. This durability reduces maintenance needs and downtime, especially in critical systems exposed to fluctuating or high temperatures.
In summary, 200° polyester-imide enameled wires provide superior thermal stability and longer life in demanding environments. They are preferred where heat resistance is critical. Meanwhile, 155° polyurethane wires suit applications with moderate temperature demands, balancing flexibility and cost.
Tip: Always select enameled wires rated above your system’s maximum operating temperature to ensure insulation reliability and extend equipment life.
155° polyurethane and 200° polyester-imide enameled wires both provide excellent electrical insulation, but their properties differ in key ways. Polyurethane enamel offers good dielectric strength, enough for many standard applications. It prevents electrical shorts and keeps signals clean in devices operating under moderate conditions.
In contrast, polyester-imide enamel delivers superior dielectric strength and insulation quality. It resists electrical breakdown better, especially when exposed to higher voltages or harsh environments. This makes it ideal for systems needing robust insulation to avoid electrical faults.
Conductivity mainly depends on the conductor material—copper or aluminum—rather than the enamel. Both wire types use high-quality copper or aluminum cores, ensuring low resistance and efficient current flow. The enamel coating doesn’t affect conductivity but provides the necessary insulation to keep conductors from shorting.
High-voltage systems demand insulation that withstands strong electrical stress without failure. Here, 200° polyester-imide wires have a clear advantage. Their enhanced dielectric strength reduces the risk of insulation breakdown, which could lead to short circuits or equipment damage.
Polyurethane wires, rated for lower temperatures and moderate dielectric strength, may not perform reliably in high-voltage or high-stress environments. Using them in such conditions risks insulation degradation and safety hazards.
Because polyester-imide enamel withstands higher voltages and harsher conditions, it’s preferred for aerospace, industrial machinery, transformers, and power supplies. These applications require long-term reliability and safety under electrical stress.
In summary, 200° polyester-imide wires offer stronger insulation and better protection in high-voltage settings. Meanwhile, 155° polyurethane wires suit lower-voltage applications where flexibility and moderate insulation suffice.
Tip: For high-voltage or demanding electrical systems, choose wires with higher dielectric strength like 200° polyester-imide to ensure safety and durability.
When it comes to mechanical strength, 155° polyurethane and 200° polyester-imide enameled wires differ significantly. The polyurethane enamel coating offers good flexibility and moderate resistance to abrasion and mechanical stress. This makes 155° polyurethane wires suitable for applications where the wire might undergo bending, twisting, or light handling during installation or operation. However, under heavy mechanical stress or frequent movement, the polyurethane enamel can wear or crack, potentially exposing the conductor and risking electrical failure.
In contrast, 200° polyester-imide wires feature a tougher, more resilient enamel layer. The polyester-imide coating bonds strongly to the conductor and resists abrasion, impact, and repeated mechanical strain better than polyurethane. This enhanced durability ensures the wire maintains insulation integrity even in environments where vibration, shock, or continuous flexing occur. For example, aerospace or industrial machinery wiring often faces harsh mechanical conditions, making 200° polyester-imide wires a preferred choice.
The mechanical durability of 200° polyester-imide wires extends their usability in demanding environments. Their resistance to chemical exposure, solvents, and moisture also contributes to their robustness. These wires withstand harsh industrial conditions, including exposure to oils, fuels, and cleaning agents, without degrading insulation or conductor performance.
Polyurethane wires, while flexible and cost-effective, are less resistant to such chemicals and environmental factors. They perform best in cleaner, less aggressive environments where mechanical stress is moderate. For example, consumer electronics and household appliances typically use 155° polyurethane wires due to their ease of handling and flexibility.
In summary, 200° polyester-imide enameled wires provide superior mechanical strength and durability. They are well-suited for applications requiring long-term reliability under mechanical and environmental stress. Meanwhile, 155° polyurethane wires balance flexibility and cost for moderate-use conditions.
Tip: Choose 200° polyester-imide wires for applications involving frequent movement, vibration, or exposure to harsh chemicals to ensure long-lasting insulation and performance.
When choosing between 155° polyurethane and 200° polyester-imide enameled wires, cost plays a significant role. Generally, 155° polyurethane wires come at a lower price point. Their manufacturing process is less complex, and the materials used are more common and less expensive. This makes them an economical choice for applications where temperature and mechanical demands are moderate.
On the other hand, 200° polyester-imide wires tend to be more costly. The advanced polymer coatings require more intricate processing and higher-quality raw materials. Their superior thermal resistance, mechanical strength, and chemical durability justify the higher price. For industries where reliability and longevity matter, the upfront investment often pays off by reducing maintenance and replacement costs.
Selecting the right wire means finding a balance between performance needs and budget limits. If your application involves moderate temperatures and mechanical stress, 155° polyurethane wires provide reliable insulation and flexibility at a reasonable cost. They work well in consumer electronics, household appliances, and general industrial equipment, where extreme conditions are rare.
However, if your system faces high temperatures, chemical exposure, or mechanical strain, investing in 200° polyester-imide wires is wise. Their durability and thermal stability reduce downtime and failures, saving money over time. In aerospace, automotive electronics, and heavy machinery, these wires deliver peace of mind and long-term value despite a higher initial cost.
In some cases, combining both types strategically can optimize budgets. Use 200° polyester-imide wires in critical, high-stress areas, and 155° polyurethane wires where conditions are less demanding. This approach maximizes performance without overspending.
155° polyurethane enameled wires offer flexibility and moderate thermal resistance, ideal for consumer electronics and household appliances. In contrast, 200° polyester-imide wires provide superior thermal and mechanical strength, suitable for aerospace and industrial machinery. When selecting between these wires, consider temperature, mechanical stress, and budget constraints. Huzhou Fuda Electric Innovation Co., Ltd. delivers innovative solutions with high-quality enameled wires, ensuring performance and reliability for various applications. Their products offer excellent insulation and durability, tailored to meet diverse industry needs.
A: 155° Polyurethane Enameled Wires are copper or aluminum conductors coated with polyurethane enamel, providing insulation up to 155°C. They are flexible and suitable for moderate temperature applications like motors and consumer electronics.
A: 200° Polyester-imide Enameled Wires offer insulation up to 200°C, with superior thermal and chemical resistance, making them ideal for high-stress environments like aerospace and industrial machinery.
A: They are cost-effective, flexible, and provide reliable insulation for devices operating under moderate temperatures, making them suitable for household appliances.
A: Yes, 200° Polyester-imide Enameled Wires are typically more expensive due to their advanced polymer coatings and superior performance in high-temperature and mechanical stress conditions.
