Teardowns of modern microwave oven transformers (MOTs) consistently reveal a major manufacturing shift. Engineers routinely spot the replacement of traditional copper windings with aluminum. MOTs function as specialized leakage transformers. They operate under near-constant current and experience exceptionally high no-load demands. Material selection directly impacts unit economics. It also dictates the thermal survival of the appliance.
Evaluating this shift requires stripping away outdated assumptions. We must look closely at the raw physical trade-offs involved. This guide breaks down essential performance data. You will discover the hidden manufacturing risks inside the coil. We also outline vital procurement criteria for engineers. Ultimately, you will understand exactly when to adopt aluminum winding wire in high-load transformer applications.
Cost-to-Weight Ratio: Aluminum weighs roughly 1/3 of copper, drastically cutting material and freight costs, though it requires a 1.6x larger cross-sectional area to match equivalent resistance.
Thermal Advantages: The combination of modern enamel coatings and aluminum’s natural oxide layer provides up to a 20°C higher thermal ceiling compared to standard copper equivalents.
Production Vulnerabilities: Aluminum is highly susceptible to work-hardening (embrittlement) and oxidation during soldering, requiring specific mechanical splicing and encapsulation methods.
Vendor Due Diligence: Mitigating failure rates requires partnering with a supplier capable of precise enamel thickness controls and defect-free drawing processes.
Microwave transformers operate distinctly from standard isolation transformers. They function as leakage transformers. This design relies on deliberate magnetic saturation. Saturation creates extremely high no-load currents. You typically see values reaching 30% to 60% of the full load. This translates to roughly 2A to 4A flowing constantly. This operational reality generates immense heat. It subjects the core to massive thermal stress. Copper historically handled this burden. However, modern engineering proves aluminum can survive these exact conditions.
Because aluminum possesses lower electrical conductivity, you must adapt the winding geometry. Achieving identical DC resistance requires a physical compromise. You must increase the wire cross-section. Engineers specify an area about 1.6 times larger than copper. This larger volume demands more physical space inside the core. You might assume this makes the transformer bulky. Practice shows a different reality.
Despite this volume requirement, you gain a massive weight reduction. An aluminum coil weighs only half as much as a copper equivalent. Manufacturers solve the space issue cleverly. They utilize rectangular or flat wire profiles. This geometry maximizes the slot fill factor. Enameled Aluminum Wire stacks neatly. It eliminates the dead space found between round wires. You keep the transformer footprint compact. You also capture massive weight reductions across the assembly line.
Property |
Copper Winding |
Aluminum Winding |
|---|---|---|
Electrical Conductivity |
100% (IACS standard) |
Approx. 61% |
Volume Required for Equal Resistance |
1.0x Base Volume |
1.6x Base Volume |
Total Coil Weight (Equal Resistance) |
100% Base Weight |
Approx. 50% Weight |
Standard Winding Profile |
Round Wires Common |
Rectangular/Flat Preferred |
Modern windings rely on more than just the applied polymer. Enameled Aluminium Wire benefits from a unique dual-barrier effect. Beneath the applied enamel, the metal behaves uniquely. It naturally forms a tough, microscopic film upon air exposure. This self-healing aluminum oxide layer acts as an insulator. It enhances overall dielectric strength significantly. Copper does not offer this secondary protective mechanism.
This combined insulation mechanism provides a distinct heat tolerance margin. You often secure a 20°C higher thermal ceiling. We see this when comparing aluminum against copper under similar insulation classes. For instance, a system might push limits from Class H (180°C) up to Class C (220°C) extremes. The oxide film prevents shorts even if the outer enamel softens slightly. This tolerance prevents catastrophic appliance fires. It gives microwave engineers vital safety margins during continuous magnetron operation.
Breakdown voltage considerations matter greatly in high-power applications. A wire's ability to withstand voltage spikes relies on its enamel grade. Industry standards define Grade 1, Grade 2, and Grade 3 thickness levels. High-frequency MOTs experience intense voltage fluctuations. They typically require thicker Grade 2 or Grade 3 coatings. These robust layers prevent partial discharge. They halt corona degradation inside the windings. Thin Grade 1 coatings often fail under these relentless electrical stresses. You must specify the correct grade to prevent sudden shorts.

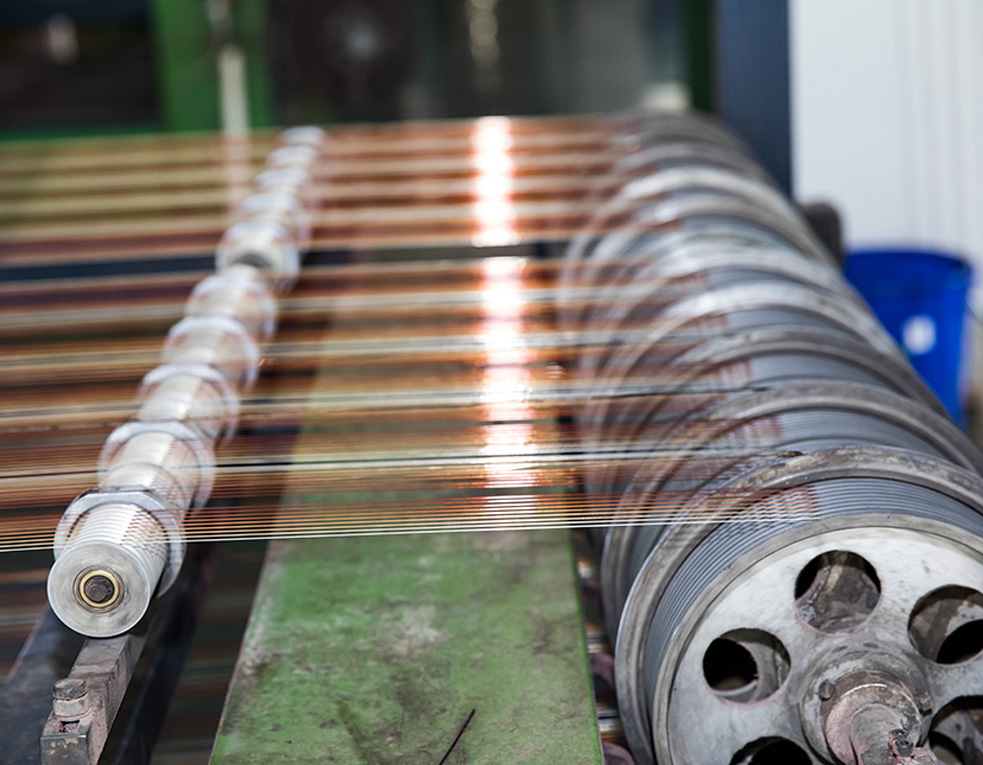

Transitioning materials introduces severe production vulnerabilities. Drawing aluminum wire induces rapid work-hardening at the microscopic level. The drawing die compresses and stretches the grain structure. The metal loses its natural ductility. If improperly annealed, the wire becomes highly brittle. You risk creating invisible micro-fractures during high-speed automated winding. These micro-fractures eventually sever the connection. They cause open circuits after the appliance reaches the consumer.
The oxidation-soldering paradox presents the most notorious manufacturing challenge. You cannot conventionally solder aluminum. The surface oxidizes instantaneously the moment you strip it. This oxide rejects standard flux. It suffers from poor thermal wetting. Standard tin-lead solder simply beads up and rolls off the joint. Factories must rethink their entire termination process.
We recommend specific troubleshooting and splicing best practices. Following these steps ensures permanent connectivity:
Abrasive preparation: Use extremely fine-grit abrasives or specialized stripping machines. Gently remove the enamel and the surface oxide. Do not gouge the underlying metal. Heavy abrasion compromises structural integrity.
Mechanical wrapping: Never rely on solder alone. Tightly twist the stripped aluminum lead with a pre-tinned copper hookup wire. This physical bond provides the primary mechanical strength. Apply a heavy, specialized flux before soldering.
Encapsulation: You must seal the joint completely. Apply an industrial-grade insulation material over the splice. A 704 silicone sealant works perfectly. It blocks oxygen and moisture. This prevents ongoing atmospheric corrosion and galvanic decay.
Selecting the right chemistry dictates thermal performance. You must match the coating to the specific heat profile of the appliance. Manufacturers offer several polymer classifications.
Polyurethane (PUR) stands out for production speed. It offers excellent solderability at 375°C. You do not need prior mechanical stripping. The heat burns away the coating safely. It works perfectly for smaller inductive components. However, PUR possesses a lower thermal limit. It often lacks the necessary heat ceiling for heavy-duty MOT applications. It degrades quickly under sustained 200°C loads.
Polyesterimide (PEI) provides a much tougher alternative. This chemistry features superior elasticity. It easily handles direct soldering above 450°C. We find it highly suitable for compact motors. It fits leakage transformers subjected to moderate mechanical stress. The elasticity prevents the coating from cracking during sharp 90-degree bends. Most premium microwave transformers utilize PEI blends.
Polyamide-imide (PAI) represents the highest tier of protection. Factories use PAI as an advanced, flexible topcoat. They apply it over standard polyester base coats. This combination drastically improves mechanical slip. It boosts automated winding speeds without increasing friction damage. It also resists chemical breakdown effectively. PAI survives exposure to transformer oils, aggressive coolants, and airborne household grease.
Chemistry Type |
Direct Soldering Temp |
Thermal Class |
Best Application Fit |
|---|---|---|---|
Polyurethane (PUR) |
375°C (Self-fluxing) |
Class F (155°C) |
Small inductors, relays, low-heat coils |
Polyesterimide (PEI) |
>450°C |
Class H (180°C) |
Microwave transformers, compact motors |
Polyamide-imide (PAI) Topcoat |
Requires Mechanical Stripping |
Class C (200°C+) |
High-speed winding, harsh chemical environments |
Sourcing reliable materials requires strict vendor due diligence. Insulation uniformity remains your top priority. Look for robust statistical process control (SPC) data. A reliable vendor provides Cpk values proving consistent enamel concentricity. Uneven coatings create thin spots along the spool. These weak spots lead to immediate short-circuiting under heavy load stresses. High-voltage transients easily punch through asymmetric insulation.
Annealing capabilities define the physical quality of the delivery. A great plated wires supplier must demonstrate strictly controlled annealing processes. They must balance tensile strength with elongation. Proper heat treatment restores ductility after the harsh drawing phase. It prevents the work-hardening brittleness we outlined earlier. Soft, pliable wire winds tightly without snapping on the production floor.
Evaluate the supplier's customization and dimensions thoroughly. Modern MOT design demands precision. The manufacturer must deliver precise rectangular or flat profiles. They must provide perfectly chamfered edges. Sharp corners cut through insulation under tension. Chamfered edges prevent corner shorts. They prove critical for optimizing physical space inside heavily constrained transformer cores.
Finally, demand rigorous batch traceability. Ensure the manufacturer provides comprehensive testing certificates for every spool shipped. You need documented proof of breakdown voltage limits. You must review the pinhole defect rates per 100 meters. Insist on thermal endurance verification. Reputable suppliers often use Elantas enamel verification standards. This transparency ensures your factory avoids costly mass recalls.
The transition to aluminum windings in microwave transformers goes beyond simple substitution. It represents a highly calculated engineering trade-off. By accepting a larger cross-section, manufacturers completely alter the appliance's physical dynamics. You navigate more complex soldering requirements. You implement new abrasive stripping techniques. In return, you capture massive assembly weight reductions. You also secure superior thermal safety thresholds thanks to the natural oxide layer.
For procurement and engineering teams, immediate action ensures smooth production scaling. We recommend the following next steps:
Audit your current transformer core designs. Verify they possess the required volume capacity to accommodate the 1.6x larger aluminum footprint.
Rigorously test supplier wire samples. Focus specifically on elongation metrics and flexibility to prevent automated winding fractures.
Perform destructive thermal tests. Verify exact enamel adherence under extreme load conditions to confirm the dual-barrier protection holds.
Update your factory termination protocols. Train assembly workers on mechanical splicing and silicone encapsulation to prevent galvanic decay.
A: MOTs function as specialized leakage transformers operating near magnetic saturation. A no-load current of 2A–4A represents roughly 30% to 60% of the full load. This behavior is a normal characteristic of the magnetic design. It does not indicate a failure or short within the aluminum wire.
A: Generally, you cannot. Unless it utilizes a specifically formulated self-fluxing wire like PUR (rated up to 375°C), direct soldering fails. Standard aluminum requires mechanical stripping. You must physically splice it with a copper lead. Finally, you must apply chemical encapsulation to prevent rapid oxidation.
A: Connect a multimeter to the high-voltage coil, which typically measures 120Ω to 150Ω. Watch the pointer or reading stabilize. Because of the massive inductance, the reading should rise slowly. A rapid spike indicates an internal partial short where the internal enamel has failed.
A: No, provided you manufacture and seal it correctly. The natural oxide layer of aluminum actually offers excellent chemical resistance. However, the physical termination points remain highly susceptible. If you leave joints exposed to moisture, galvanic corrosion will rapidly destroy the connection.
