Unlocking The Secrets of Enamel Wire: What You Need To Know

Enamel wire, or magnet wire, plays a crucial role in many electrical devices. But what exactly is it?

In this article, we’ll break down the essential aspects of enamel wire. You’ll learn about its types, insulation, applications, and why it’s indispensable in electrical systems today.

Keep reading to discover everything you need to know about this versatile material.

Introduction: What is Enamel Wire?

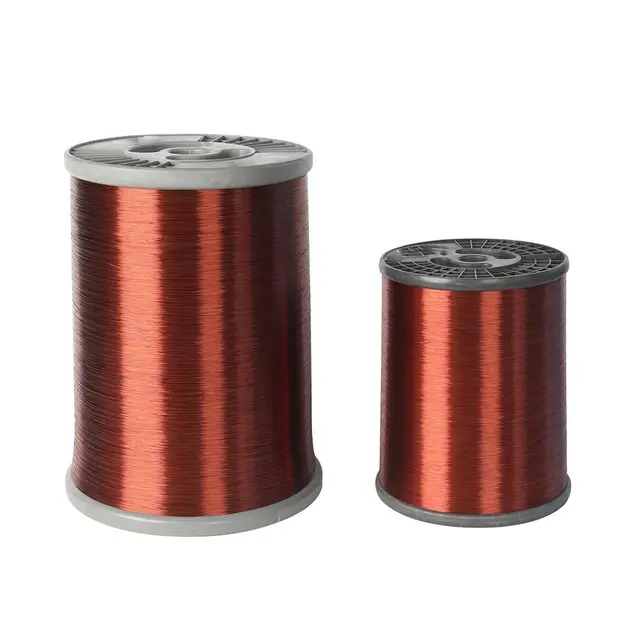

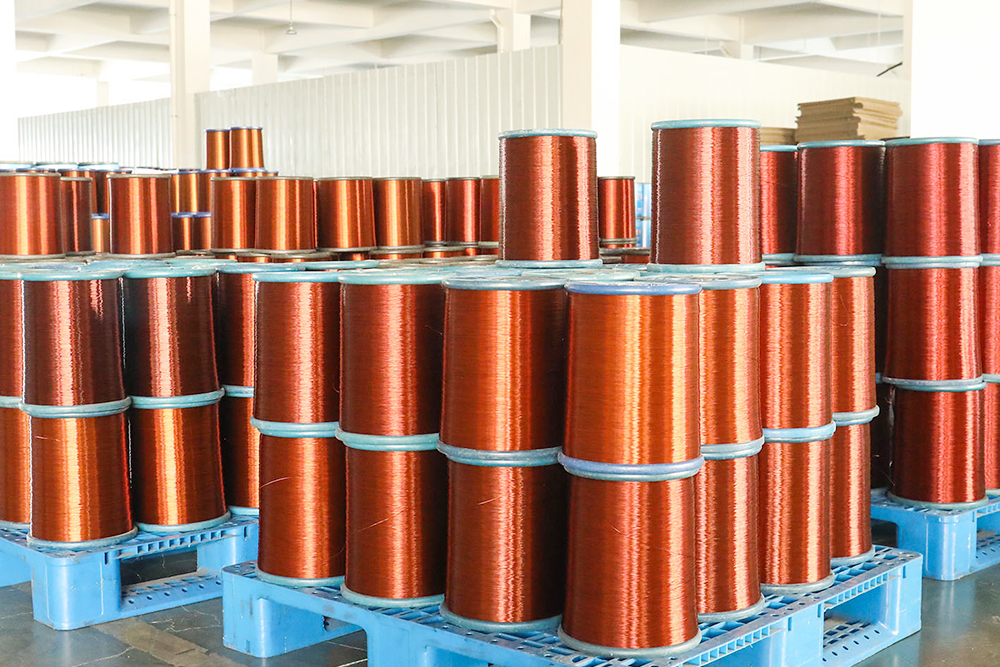

Enamel wire, also known as magnet wire, is a specialized type of wire used in the construction of electromagnetic devices. It's made by coating copper or aluminum wire with an insulating enamel-like material. This coating ensures the wire can carry current without causing short circuits, making it ideal for tightly wound coils.

In essence, enamel wire serves as the backbone of many electrical applications, from electric motors to transformers. The wire's insulation prevents electrical shorts, while its flexibility allows for efficient and compact winding.

Key Features of Enamel Wire

• Material: Primarily made from copper, though aluminum is sometimes used.

• Insulation: Coated with a tough polymer film such as polyurethane or polyamide.

• Shape: Available in both round and rectangular forms, depending on the application.

Applications of Enamel Wire

• Electric Motors: Used in the windings of motors for efficient performance.

• Transformers: Essential for creating electromagnetic fields in transformers.

• Speakers and Headphones: Provides the necessary conductivity in audio devices.

Types of Enamel Wire

Enamel wire comes in different shapes and materials, each tailored to specific applications. Let's explore the main types of enamel wire and the materials used to make them.

What Are the Different Types of Enamel Wire?

• Round Enamel Wire

• The most common type, widely used in small and medium-sized electric motors, transformers, and inductors. Its round shape makes it easier to wind and fit into tight spaces.

• Rectangular Enamel Wire

• Offers higher space efficiency compared to round wire. This type is ideal for applications requiring more compact windings, like in high-performance motors where miniaturization and high output are needed.

Materials Used in Enamel Wire

• Copper

• Copper is the most commonly used material for enamel wire. It offers excellent conductivity and is easy to wind into tight coils, making it the preferred choice for small to medium motors and transformers. High-purity copper is used to ensure maximum efficiency.

• Aluminum

• Aluminum is often used for larger transformers and motors. It’s less conductive than copper, so aluminum wires require a larger cross-sectional area to achieve similar resistance. However, it is lightweight and cost-effective.

• Other Conductor Materials

• For specialized needs, enamel wire can be made from materials like brass, silver, nickel, stainless steel, and their alloys. These materials offer properties such as higher mechanical strength or enhanced bending performance, catering to specific industrial demands.

Insulation of Enamel Wire

The insulation of enamel wire is a critical feature that ensures safety and functionality in various electrical applications. It prevents electrical shorts and allows the wire to perform in high-temperature and high-voltage environments.

What is the Insulation on Enamel Wire?

• Polymer Film Insulation

• Enamel wire is insulated using thin layers of polymer films like polyurethane, polyester, or polyimide. These films provide excellent electrical insulation and durability.

• Polyimide insulation is particularly valued for its high-temperature tolerance, capable of withstanding up to 250°C, making it suitable for high-power applications.

Grades of Insulation

• Grade 1 (Thin Insulation)

• This grade offers basic insulation for low-temperature applications. It is often used in general-purpose motors and devices that don't face extreme heat conditions.

• Grade 2 (Medium Insulation)

• Ideal for devices requiring moderate heat resistance, such as transformers and smaller motors. Grade 2 insulation strikes a balance between performance and cost.

• Grade 3 (Thick Insulation)

• The highest level of insulation, designed for high-performance and high-temperature applications. This grade is used in environments where extreme heat or stress is present, ensuring the wire lasts longer and maintains its integrity under challenging conditions.

Applications of Enamel Wire

Enamel wire plays a crucial role in a variety of industries, especially where electromagnetism is involved. Let's explore where enamel wire is commonly used and how it functions in these applications.

Where is Enamel Wire Used?

• Electric Motors

• Enamel wire is most commonly used in the windings of electric motors, both small and large. It allows for compact and efficient winding, which is crucial for motor performance.

• Transformers and Inductors

• Essential for building transformers, enamel wire helps in electromagnetic induction, transferring energy through coils with minimal loss. Its insulation ensures safety and long-term functionality.

• Loudspeakers and Headphones

• In the audio industry, enamel wire is used in the coils of loudspeakers and headphones. Its flexibility and durability help produce high-quality sound and maintain the integrity of the devices.

• Electromagnets and Actuators

• Enamel wire is critical in creating strong magnetic fields, powering electromagnets and actuators used in various machines and devices, from medical equipment to industrial machinery.

How Does Enamel Wire Work in Electromagnetic Devices?

• Role in Magnetic Coils

• By conducting electricity through coils, enamel wire helps generate magnetic fields. Its insulation prevents overheating and ensures the wire maintains its efficiency over time.

• Efficiency and Performance

• Enamel wire ensures electromagnetic devices operate at peak performance by offering both high conductivity and excellent insulation. This combination allows the devices to work efficiently while avoiding power loss and overheating.

Key Properties of Enamel Wire

Enamel wire has several key properties that make it suitable for a wide range of electrical applications. These characteristics ensure its reliability and efficiency in various devices.

What Are the Important Properties of Enamel Wire?

• High Electrical Insulation

• The enamel coating provides excellent insulation, preventing electrical shorts and ensuring safe current flow through the wire. This is essential for protecting both the wire and the devices it powers.

• Heat Resistance

• Enamel wires are designed to handle high temperatures, with some types capable of withstanding up to 240°C. This heat tolerance makes them ideal for use in high-power applications, such as electric motors and transformers.

• Corrosion and Oxidation Protection

• The enamel layer also acts as a shield, preventing corrosion and oxidation. This extends the life of the wire and helps it maintain performance even in harsh environments.

What is Breakdown Voltage?

• Breakdown voltage refers to the maximum voltage that the insulation can withstand before it fails.

• A thicker enamel coating increases the breakdown voltage, allowing the wire to handle higher voltages. This is particularly important for high-voltage applications like transformers and high-power motors.

How to Choose the Right Enamel Wire for Your Project

Selecting the right enamel wire for your project depends on several factors. It’s essential to match the wire’s properties to your specific needs to ensure optimal performance.

What Factors Should You Consider When Selecting Enamel Wire?

• Wire Material

• Choose between copper and aluminum based on conductivity and cost. Copper is more efficient but more expensive, while aluminum is lighter and more cost-effective, though it requires larger cross-sectional areas for the same conductivity.

• Wire Thickness

• The gauge of the wire (AWG) impacts its current-carrying capacity and size. Higher gauge wires are thinner and more flexible, but they can handle less current. Consider both the current requirements and the available space when selecting the thickness.

• Insulation Grade

• Insulation grade determines the wire’s heat tolerance. For high-temperature applications, select a wire with a higher insulation grade, such as polyimide for temperatures up to 250°C. Choose a lower grade for standard applications to reduce costs.

• Application Needs

• Consider what the enamel wire will be used for. Motors, transformers, and audio equipment each have different requirements. For example, transformers need wire with higher voltage resistance, while audio equipment requires finer, more flexible wire.

Common Problems and Troubleshooting with Enamel Wire

While enamel wire is a reliable and durable material, it can encounter some issues during use. Knowing how to troubleshoot and handle these problems will help maintain performance and longevity.

What Are the Common Issues with Enamel Wire?

• Insulation Failure

• The enamel coating can sometimes crack or peel, leading to electrical shorts. This can happen due to mechanical stress, high temperatures, or prolonged use. When this occurs, the wire may no longer provide adequate insulation.

• Corrosion and Oxidation

• Over time, especially in high-humidity environments, the enamel coating may degrade. This can lead to corrosion of the underlying wire, compromising its effectiveness and reducing its lifespan.

How to Handle Enamel Wire During Soldering

• Stripping the Enamel Coating

• Older wires without flux-like coatings need the enamel stripped before soldering. This can be done by carefully using sandpaper or a soldering iron to remove the coating. Take care to avoid damaging the wire underneath.

• Solderable Wires

• Many newer enamel wires come with a self-bonding enamel coating that allows direct soldering. This feature eliminates the need to remove the enamel, making the soldering process faster and more efficient.

Summary

Enamel wire is a highly durable and heat-resistant material, offering excellent electrical insulation. These properties make it indispensable in a wide range of electrical applications, from motors to transformers.

Understanding the different types, uses, and properties of enamel wire allows you to choose the most suitable option for your needs. This ensures optimal performance and extends the longevity of your electromagnetic devices.

FAQs

Q: What is the difference between enamel wire and magnet wire?

A: Enamel wire is a type of magnet wire, specifically coated with an enamel-like insulation for electrical applications. Magnet wire can also refer to other insulated wires used for electromagnetic coils.

Q: Can enamel wire be used for high-voltage applications?

A: Yes, enamel wire, especially with thicker insulation grades, is suitable for high-voltage applications such as transformers and electric motors.

Q: What is the typical lifespan of enamel wire?

A: The lifespan of enamel wire depends on operating conditions, but it is typically rated for 20,000 hours at its nominal temperature.
