Have you ever wondered how your electric motor or transformer operates efficiently? The answer often lies in enameled copper wire. This material is vital in numerous electrical and electromagnetic devices.
In this post, we'll discuss what enameled copper wire is, its properties, and why it's indispensable in applications ranging from motors to transformers. You'll also learn about its advantages and how it contributes to the functionality of everyday electrical devices.

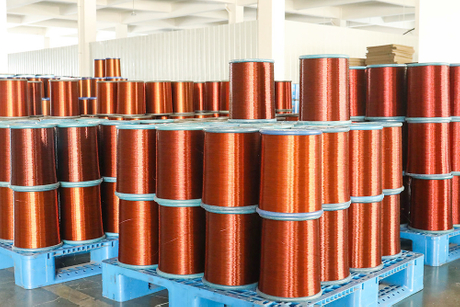

Enameled copper wire, often referred to as magnet wire, is a type of copper wire coated with an insulating enamel. This coating prevents short circuits by isolating the individual coils, making it an essential component in many electrical and electromagnetic devices.
Enameled copper wire consists of a copper conductor coated with a thin layer of polymer enamel. The enamel serves as insulation, allowing the wire to be wound tightly without risk of electrical contact between the coils. This wire is used in a range of applications, from motors to transformers.
Copper is the preferred material for electrical wiring due to its excellent electrical conductivity. It allows electricity to flow with minimal resistance, ensuring efficiency in electrical systems. Copper’s high tensile strength and resistance to corrosion also make it a durable choice, especially in demanding environments.
Insulation is crucial for preventing electrical short circuits. In enameled copper wire, the enamel coating acts as a barrier, keeping the electrical current confined to its designated path. This not only enhances safety but also improves the wire's efficiency and longevity. Without insulation, the wire would easily short-circuit, causing energy loss and potential device failure.
Enameled copper wire offers a range of properties that make it highly valuable in electrical and electromagnetic applications. From electrical conductivity to resistance against chemicals, these properties enhance its performance and durability in various settings.
Copper is known for its superior electrical conductivity, which makes it the preferred material for electrical wiring. It allows electricity to flow smoothly with minimal resistance. As a result, copper is widely used in enameled wire, ensuring efficient transmission of electrical current in motors, transformers, and other devices.
The enamel coating on copper wire contributes significantly to its thermal stability. This coating enables the wire to withstand higher temperatures, preventing overheating. In addition, the enamel adds mechanical strength, protecting the copper from damage during winding or use. The combined properties make enameled copper wire suitable for high-performance applications that require both temperature resistance and physical durability.
Enameled copper wire is known for its flexibility. The enamel insulation allows the wire to be bent and wound tightly without breaking or losing its insulating properties. This flexibility is essential for compact and efficient designs, especially in applications like motors and transformers. The wire's durability ensures that it can handle mechanical stresses without failure, making it ideal for long-lasting use in harsh environments.
The enamel coating also provides excellent resistance to a variety of chemicals and solvents. This is particularly important in industrial environments, where the wire may be exposed to harsh substances. The coating protects the copper from corrosion and damage caused by chemicals, ensuring reliable performance even in demanding conditions.
Enameled copper wire is essential in many electrical and electromagnetic devices. Its unique properties make it highly suitable for use in motors, transformers, generators, and sound systems.

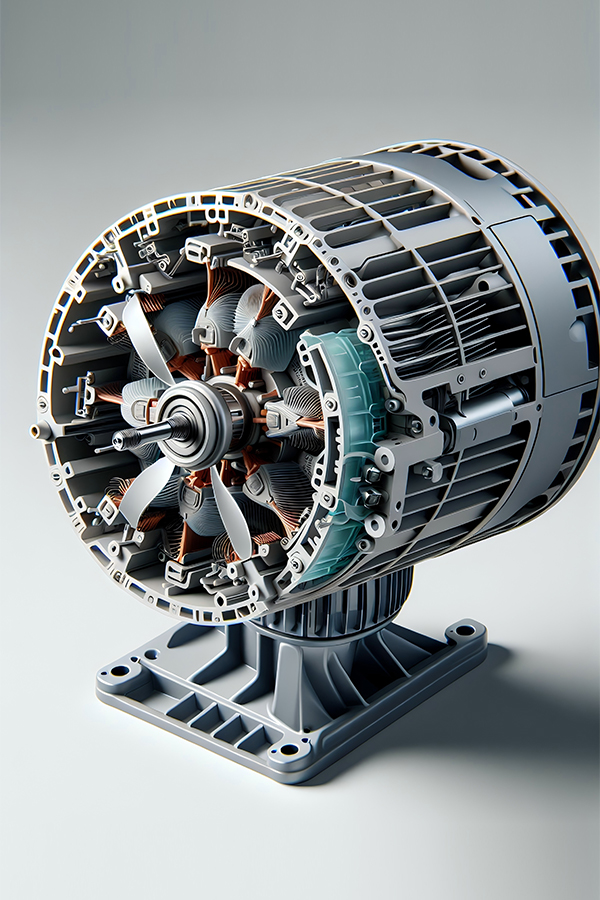

Enameled copper wire is crucial in the windings of electric motors. The wire helps generate the magnetic fields necessary for motor operation. By using copper, motors achieve higher efficiency and better performance. It's widely used in both household appliances like refrigerators and industrial motors used in heavy machinery. The wire's ability to handle high currents and temperatures makes it ideal for these applications.
Transformers rely heavily on enameled copper wire for their windings. Copper’s superior conductivity ensures efficient energy transfer between primary and secondary coils. Enameled wire prevents short circuits and allows the coils to be tightly wound, maximizing space and performance. The use of copper enhances transformer reliability and ensures consistent power delivery.
In generators, enameled copper wire plays a vital role in converting mechanical energy into electrical energy. The wire is used in the windings to generate electricity through electromagnetic induction. It offers high efficiency and durability, ensuring reliable performance in both small-scale and large-scale energy generation systems.
Enameled copper wire is used in the voice coils of speakers and microphones. The wire’s role is to convert electrical signals into sound or vice versa. Its excellent conductivity and insulation properties ensure minimal energy loss while maintaining sound quality. This makes enameled copper wire a key component in both consumer electronics and professional audio equipment.
Enameled copper wire stands out in the world of electrical and electromagnetic devices due to its numerous advantages. These benefits make it a preferred choice in a wide range of applications, from motors to transformers.
The enamel coating allows for tighter, high-density winding. This means more wire can fit into a smaller space, which is crucial for compact designs in devices like motors and transformers. It maximizes the number of turns within the coil, improving the device's performance without increasing its size.
Enameled copper wire is coated with a durable insulation that prevents short circuits. This dielectric strength ensures the wire can handle high voltages without breakdown, making it reliable for use in applications that require continuous operation under high electrical stress.
The enamel coating helps the wire resist high temperatures, preventing overheating and damage. This feature is especially valuable in environments where equipment generates significant heat, such as in electric motors and transformers. The enamel ensures that the wire maintains its insulating properties even in extreme conditions.
Compared to other insulation methods, enameled copper wire is a cost-effective solution. The enamel coating is relatively inexpensive to apply, and its durability and performance reduce the need for frequent replacements. This makes enameled copper wire an affordable choice for both large-scale industrial applications and smaller consumer products.
Enameled copper wire is available in various gauges, insulation types, and thermal classes. This versatility allows it to be used in a wide range of applications, from low-power devices to high-performance machinery. Whether you need wire for a motor, transformer, or speaker, there's an enameled copper wire option to meet your specific needs.
While enameled copper wire offers numerous advantages, there are also some limitations. Understanding these drawbacks can help you determine when it's best to use this wire and when alternative materials might be needed.
Every enamel coating has a maximum thermal class, which indicates the highest temperature it can safely handle. If the thermal class is exceeded, the enamel can degrade, losing its insulating properties. This can lead to short circuits or wire failure, particularly in high-heat environments. Choosing the appropriate thermal class for your application is crucial to maintaining performance.
Though the enamel coating provides some protection, it is not indestructible. Under harsh conditions, such as excessive vibration or impact, the enamel can crack or wear off. This damage can expose the copper wire, potentially leading to electrical shorts and decreased efficiency. Proper handling and installation are required to avoid mechanical damage.
Enameled copper wire can suffer degradation when exposed to moisture, chemicals, or extreme weather conditions. Prolonged exposure to these environmental factors can weaken the enamel, causing it to break down. This makes it unsuitable for outdoor or harsh industrial environments unless additional protective coatings are used.
Certain types of enameled copper wire, particularly those with polyurethane insulation, require the removal of the enamel before soldering or crimping. This adds an extra step in the manufacturing or repair process. For some applications, this can be time-consuming and reduce overall efficiency.
Enameled copper wire must meet specific standards to ensure its performance and safety in electrical applications. These standards are set by organizations like NEMA, IEC, and JIS, which provide guidelines for wire quality and consistency.
NEMA (National Electrical Manufacturers Association) and IEC (International Electrotechnical Commission) are two major bodies that define the standards for enameled copper wire. These standards cover various aspects such as insulation thickness, dielectric strength, and thermal properties. NEMA sets guidelines primarily for the North American market, while IEC standards are recognized internationally. JIS (Japanese Industrial Standards) is another important set, mainly used in Japan.
The main differences between these standards lie in the specific testing methods, acceptable tolerances, and regional requirements. While NEMA tends to focus on broader, industry-specific needs, IEC and JIS are more standardized globally, ensuring compatibility across different countries and industries.
Enameled copper wire comes in different builds, which refer to the number of enamel layers that coat the copper conductor. These builds can be classified as:
Single Build: The thinnest insulation layer, suitable for lower voltage applications.
Double Build: A thicker insulation layer providing greater dielectric strength and mechanical protection.
Triple Build: The thickest insulation, typically used for high-voltage or demanding environments.
Thermal classes indicate the maximum temperature the wire can handle while maintaining its insulating properties. The common thermal classes include:
Class 105°C (A)
Class 130°C (B)
Class 155°C (F)
Class 180°C (H)
The thermal class of enameled copper wire affects its longevity and performance. Higher thermal classes allow the wire to operate at elevated temperatures without degrading, making them suitable for high-performance applications.
Enameled copper wire continues to evolve, driven by technological advancements and the increasing demand for higher efficiency, sustainability, and specialized applications. Here are some key trends shaping the future of enameled copper wire.
Ongoing research is focused on developing enameled copper wire that can withstand even higher temperatures and voltage stresses. As industries like electric vehicles (EVs) and renewable energy push for more powerful systems, the demand for wires that can handle extreme conditions grows. New enamel coatings are being tested to increase heat resistance and provide higher dielectric strength, making wires more durable in demanding environments.
Innovations are underway to enhance the mechanical properties of enameled copper wire. These include improvements in abrasion resistance, flexibility, and cut-through resistance. Wires are being designed to withstand the stresses of high-speed winding, vibration, and harsh operational conditions. These innovations will help extend the life of electrical components, ensuring they perform reliably even in tough environments.
Sustainability is becoming a key focus in the production of enameled copper wire. Efforts are being made to create more environmentally friendly enamel formulations, including those with lower volatile organic compound (VOC) emissions. Manufacturers are also exploring ways to improve the recyclability of enameled copper wire, reducing waste and minimizing the environmental impact of wire production.
The rise of electric vehicles is driving significant innovations in enameled copper wire. EVs require high-performance wiring capable of withstanding higher currents and temperatures. Innovations in wire design, such as the development of flat wires with better space efficiency, are helping to optimize EV motors and batteries. These advances are essential as the EV industry continues to grow and push for more efficient, compact, and durable electrical systems.
Enameled copper wire plays a vital role in industries such as electronics, motors, and transformers. Its excellent conductivity, insulation, and durability make it indispensable for efficient energy transfer.
Looking ahead, the demand for enameled copper wire will grow in renewable energy, electric vehicles, and advanced technologies. Innovations will continue to drive its development, ensuring its key role in modern electrical systems.
A: Enameled copper wire is coated with a thin layer of enamel insulation, preventing short circuits and enabling tight coil winding. This coating allows for high-density applications, ensuring safe and efficient operation.
A: Copper is preferred due to its superior electrical conductivity, high tensile strength, and flexibility. These qualities ensure reliable performance and durability in demanding applications, making it the ideal choice for enameled wire.
A: Common enamel coatings include polyurethane, polyester, and polyimide. These coatings offer varying degrees of flexibility, thermal stability, and chemical resistance, suited to different applications.
A: Consider factors such as voltage, temperature, and mechanical stress when selecting enameled copper wire. Choose the right thermal class and wire gauge to match your project's specific requirements.
A: Yes, enameled copper wire is recyclable. Both the copper and the enamel can be processed to recover the material, making it an environmentally friendly option.
