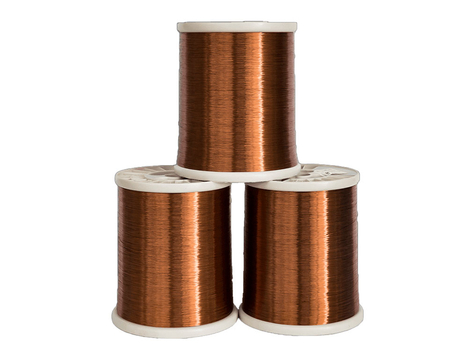

Enameled copper wire is essential for many electrical devices, thanks to its superior conductivity and insulation. But have you ever wondered how this wire is made?
In this article, we’ll break down the entire process, from materials to techniques, for creating high-quality enameled copper wire. Whether you're a hobbyist or a professional, this guide will help you master the enameling process.
The first step is high-quality bare copper wire, which ensures excellent electrical conductivity.
For most applications, high-purity copper wire is ideal to minimize resistance and maximize conductivity. Choose finer gauges for small projects and thicker gauges for industrial uses.
Common gauges range from 30 AWG (for small wiring) to 12 AWG (for larger applications), depending on the intended use.
Enamel coating protects the copper from damage and prevents electrical short circuits, making it essential for enameled copper wire.
Polyurethane: Flexible and thermally resistant.
Polyester: Durable and heat-resistant.
Polyamide-imide: Resistant to chemicals, ideal for heavy-duty use.
Enamel acts as an insulator, protecting copper wire from moisture, heat, and electrical leakage.
To make enameled copper wire, you'll need:
Spool Holder: Keeps wire organized during winding.
Enamel Bath: Coats the wire with enamel.
Heating Oven: Cures the enamel to bond it to the wire.
Sandpaper: Strips enamel for proper soldering.
Flux: Aids in solder bonding.
Soldering Iron: Ensures strong electrical connections after enamel removal.
Before applying the enamel coating, the copper wire must be clean. Dirt, grease, and oxidation can prevent the enamel from sticking properly, which may affect the wire's performance.
Importance of Removing Dirt, Grease, and Oxidation
Cleaning ensures a smooth, adhesive-friendly surface for the enamel. Without this, the enamel may peel off or fail to bond securely.
Methods for Cleaning the Wire
Chemical Cleaning: Using solvents or acidic solutions to remove impurities.
Mechanical Cleaning: Polishing the wire using abrasive materials to achieve a smooth finish.
Annealing is the process of heating the copper wire to soften it, which makes it more flexible and easier to work with.
Why Annealing Is Important for Flexibility
Annealing increases the wire’s ductility, preventing it from breaking during the enameling process or when it is bent or wound.
How to Anneal Copper Wire Properly
To anneal copper, heat it in a controlled oven to a temperature of around 300°C. Once heated, allow the wire to cool slowly in air.
Enamel is applied to copper wire using one of two main methods:
Extrusion: The wire is passed through a die that coats it with enamel.
Dipping: The wire is submerged in a bath of liquid enamel and then pulled out.
How to Ensure an Even Enamel Coating
Ensure the enamel is applied uniformly by controlling the wire's speed through the die or bath. Consistency is key to avoiding thick or thin spots that could lead to poor insulation.
After applying the enamel, pre-curing helps to set the first layer of enamel before further curing.
How Pre-Curing Helps in Setting the First Layer of Enamel
Pre-curing partially hardens the enamel, ensuring it stays in place during the next steps.
Temperature and Timing for Pre-Curing
Heat the wire to around 100°C for a few minutes. This helps to solidify the enamel without fully curing it, which will happen later.
Curing is where the enamel fully hardens and bonds to the copper. During this phase, solvents evaporate, and the enamel undergoes a chemical transformation that strengthens it.
What Happens During the Curing Phase
The enamel is heated to a specific temperature, allowing it to fully polymerize and form a strong, durable insulating layer.
Importance of Controlled Temperature for Curing
Too high or too low a temperature can cause the enamel to crack or fail to cure properly. Maintaining the right temperature is crucial for a uniform, strong coating.

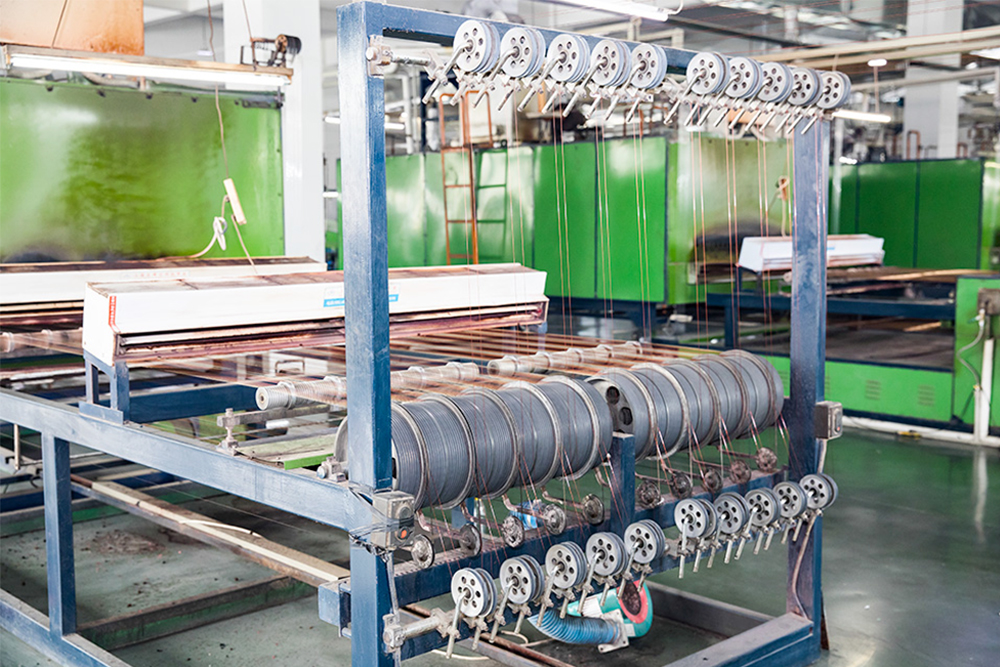

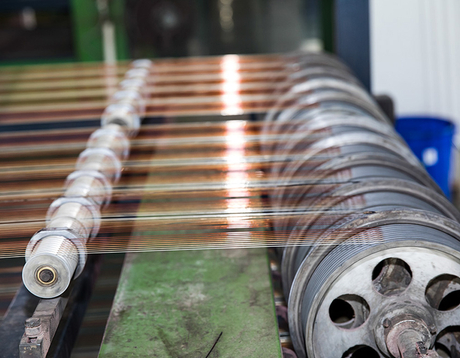

The wire is passed through an oven where it is heated to cure the enamel.
Temperature Ranges and Time Required for Curing
The oven temperature typically ranges between 250°C to 300°C. Curing time is usually around 1-2 minutes, depending on the thickness of the enamel layer.
Once the wire exits the curing oven, it needs to be cooled down quickly to preserve the enamel coating.
Methods to Cool the Wire Without Damaging the Enamel
Cold air from fans is directed over the wire to bring its temperature down safely without cracking the enamel. This prevents the wire from overheating and keeps the enamel intact.
How Fans and Air Cooling Are Used in the Process
Fans create a consistent, even cooling environment that helps to protect the enamel while preventing uneven temperatures.
After cooling, the wire undergoes final curing to ensure the enamel’s full durability.
The Role of Final Curing in Ensuring the Enamel’s Durability
Final curing strengthens the enamel and ensures it adheres perfectly to the copper, making it resistant to environmental wear and tear.
Multiple enamel coatings are often applied to ensure the wire has the correct insulation thickness. More layers provide better protection and improve the wire’s durability.
To reach the desired thickness, you’ll need to carefully control the number of enamel layers. Typically, this involves applying several thin coats, curing each one before adding another. This ensures even coverage and strong insulation.
Apply the additional layers after the first layer is cured. The process is repeated until the wire has the necessary thickness. Each layer is carefully cured at the appropriate temperature and time to maintain a uniform coat.
After applying each enamel layer, final curing ensures that the coatings bond securely to the copper wire.
How Each Additional Layer Is Cured
Each layer must be cured individually. After applying the enamel, heat it in an oven to allow each layer to harden before applying the next.
The Time and Temperature Needed for Curing Multiple Coatings
Each enamel layer should be cured at around 250-300°C for 1-2 minutes. This allows for proper polymerization of the enamel, ensuring a durable and effective insulation layer.
Sanding is done after the enamel has fully cured and helps to smooth out the surface of the wire. It is essential if you want to remove imperfections or rough spots, which could affect performance or aesthetics.
Sanding provides a smooth surface, ensuring better insulation integrity and making it easier to handle the wire during subsequent stages. A clean, smooth surface is also critical for soldering connections.
You can use sandpaper or a specialized wire sander to remove any excess enamel. Be careful not to damage the wire’s insulation. A light sanding is often enough to achieve the desired result.
Lubrication is an important step before winding the enameled wire onto spools. It reduces friction and helps the wire wind smoothly without damage.
Why Lubrication Is Essential for Motor Winding
Lubricated wire is easier to handle and wind onto spools. It also helps prevent damage during motor winding, especially in high-speed machinery.
Types of Lubricants Used
Common lubricants include silicone oil, wax-based coatings, and special industrial lubricants designed for enameled wire. These lubricants protect the enamel and prevent abrasions.

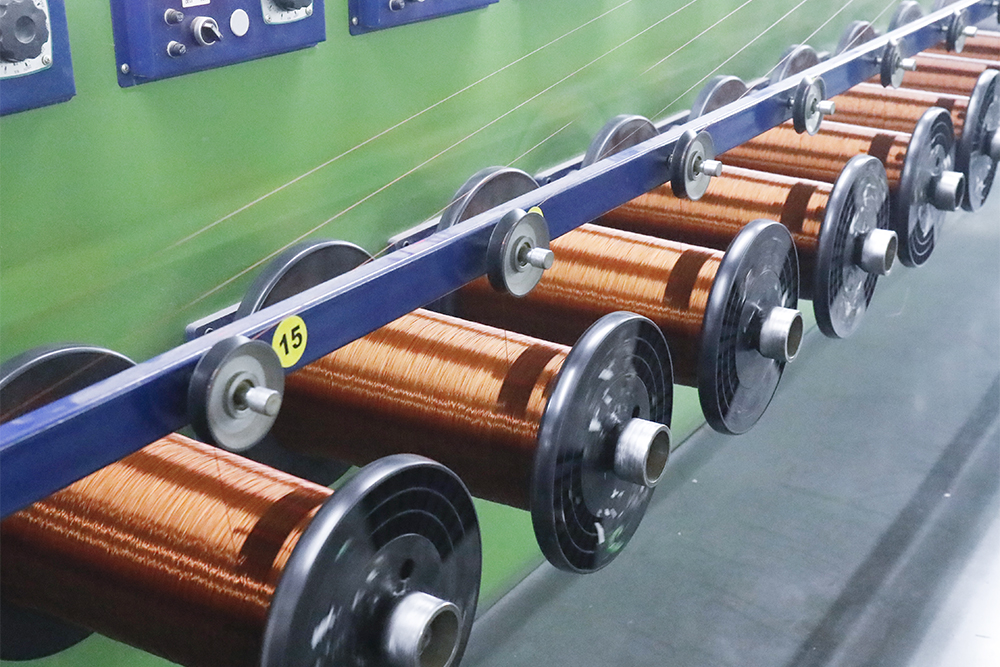

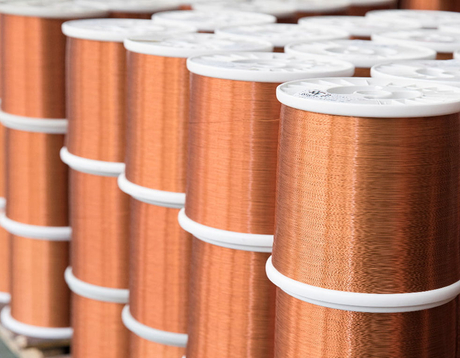

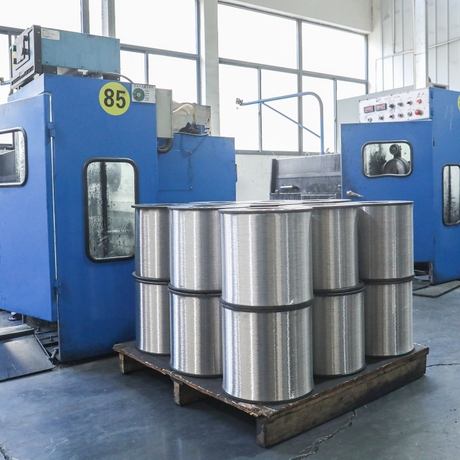

After lubrication, the wire is wound onto spools for storage or distribution. This process ensures the wire is kept organized and ready for further use.
The Process of Winding the Wire onto Spools
The wire is carefully fed into the spool holder, ensuring it winds evenly and tightly. This prevents tangling and allows for efficient use in manufacturing.
Importance of Ensuring Tight and Even Spooling
Even and tight spooling helps prevent the wire from kinking or breaking. It ensures that the wire remains in good condition during storage or transport.
It’s essential to test the wire’s electrical resistance and insulation after enameling. High-quality wire should have minimal resistance and excellent insulation.
Electrical Resistance Test
Use a multimeter to measure resistance. It should show low resistance for efficient conductivity.
Insulation Test
Use a high-voltage tester to ensure the enamel prevents electrical leakage.
Ensuring the enamel stays in place and doesn't degrade is vital.
Adhesion Test
Perform a tape test to check if the enamel adheres properly. If it peels off, the bond is weak.
Durability Test
Bend the wire to check if the enamel cracks or separates.
Consistent enamel thickness is crucial for performance. Too thin may lead to poor insulation, while too thick reduces flexibility.
Measuring Enamel Thickness
Use micrometers or X-ray machines for accurate measurements.
Temperature and humidity affect enamel quality.
Temperature Control
Maintain stable curing oven temperatures to ensure proper enamel curing.
Humidity Control
Keep the production area dry to avoid moisture contamination and ensure proper enamel adhesion.
The process of making enameled copper wire involves several key steps: cleaning the copper wire, annealing it for flexibility, applying multiple enamel coatings, curing each layer, and finishing with sanding and lubrication. Innovations in materials and techniques will continue to improve the wire's performance and production efficiency, while also addressing environmental concerns. Understanding this manufacturing process is crucial for manufacturers to ensure the production of high-quality, durable, and safe enameled copper wire that meets industry standards.
A: Making enameled copper wire at home is possible, but it requires specialized equipment, such as a heating oven, enamel bath, and precise temperature control for curing. It’s a complex process, best suited for a controlled industrial setting.
A: The best enamels for wire coating include polyurethane, polyester, and polyamide-imide. These provide excellent insulation, heat resistance, and durability, making them ideal for various electrical applications.
A: Quality can be tested by checking the wire’s insulation integrity, electrical resistance, and adhesion. The enamel should be uniform, without cracks or peeling, and the wire should pass electrical insulation tests.
A: Enameled copper wire has a thin enamel coating that provides electrical insulation, whereas regular wire lacks this coating, making it prone to short circuits and environmental damage.
