When it comes to manufacturing electric vehicles (EVs), the efficiency, performance, and longevity of the electric motor are paramount. A critical component in ensuring these qualities is the winding wire used in the motor, particularly enameled copper wire. The winding wire forms the heart of the coil that generates the magnetic field, which powers the electric motor. As such, choosing the right winding wire can significantly impact the performance and durability of an EV motor.
Electric vehicles (EVs) are increasingly becoming a popular alternative to traditional vehicles due to their energy efficiency and environmental benefits. The motor system in an EV plays a vital role in converting electrical energy into mechanical energy. The winding wires used in these motors are central to ensuring the system operates smoothly. Enameled copper wire, with its excellent conductivity and durability, is the material of choice for many manufacturers.
This article will delve into the 9 factors that must be considered when selecting winding wires, particularly enameled copper wire, for EV applications. Understanding these factors is crucial to optimizing motor performance, extending the life of components, and ensuring the vehicle runs at its peak efficiency.
The material used for winding wires directly influences the overall performance of the electric motor. When selecting winding wires for EVs, the material must ensure low electrical resistance, high durability, and efficient energy conversion.

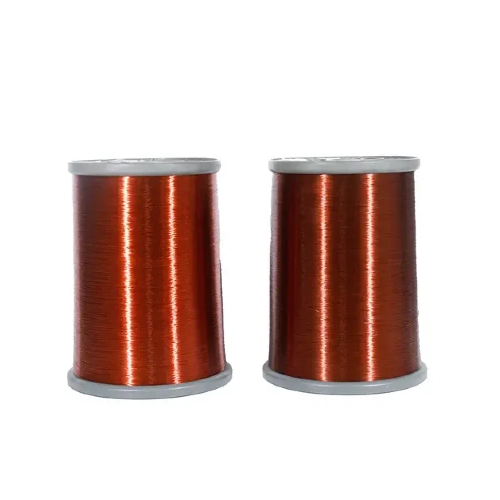

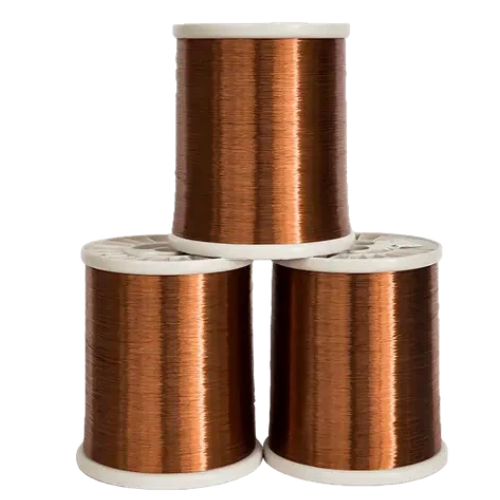

Enameled copper wire is the most preferred choice for winding applications due to its superior electrical conductivity. Copper conducts electricity far better than most other metals, ensuring minimal energy loss in the motor. The high conductivity of copper also allows for thinner wires, enabling tighter windings, which is particularly useful in space-constrained EV motors.
Electrical Conductivity: Copper's electrical conductivity is almost twice that of aluminum, making it ideal for applications where efficient energy transfer is essential.
Strength and Durability: Copper is also resistant to corrosion, which ensures the longevity of the winding wire in various environmental conditions.
Table 1: Comparison of Copper and Other Materials Used in Winding Wires
Material | Electrical Conductivity | Durability | Cost | Ideal Usage |
Copper | 100% | High | High | Electric motors, transformers, inductors |
Aluminum | 60% | Medium | Low | Low-power motors, budget-friendly options |
Silver | 106% | Very High | Very High | High-end equipment and aerospace motors |
The gauge and size of the enameled copper wire used for winding are crucial in determining the current-carrying capacity and the overall efficiency of the motor. Selecting the correct wire size impacts the resistance, heat generation, and the maximum current the wire can carry.
The wire gauge (diameter) is determined by the motor’s power requirements and the available space in the coil winding. Smaller gauge wires (thicker wires) can carry more current but take up more space. On the other hand, larger gauge wires (thinner wires) allow for tighter windings, reducing space consumption, but they can only carry less current.
Thicker Wires (Low Gauge): These are ideal for high-power applications but take up more space, leading to larger and bulkier motors.
Thinner Wires (High Gauge): These are commonly used in motors with high efficiency demands, as they can be wound more tightly, optimizing the use of available space.
Insulation plays a critical role in ensuring the enameled copper wire performs optimally. It prevents short circuits, protects the wire from external damage, and helps maintain the motor's operational efficiency over time.
Enameled copper wire is coated with an enamel-based insulation layer, which can come in various types, such as polyurethane, polyester, and polyamide-imide. These coatings enhance the wire’s performance by offering thermal resistance, mechanical protection, and dielectric strength.
Polyurethane Insulation: Provides good flexibility and high-temperature resistance.
Polyester Insulation: Known for its excellent thermal and chemical resistance properties.
Polyamide-imide Insulation: Offers higher thermal resistance, making it ideal for high-performance EV motors.
A proper insulation layer ensures that the winding wire can handle high temperatures without breaking down. This is particularly important for EV winding wires, as the motor generates significant heat during operation.
EV motors are subjected to varying levels of heat during operation, depending on the power output. Therefore, the temperature rating of the winding wire is a critical factor to consider when choosing enameled copper wire.
The temperature rating is a measure of how much heat the wire can tolerate before the insulation begins to degrade. Enameled copper wire typically comes in different temperature classes, such as:
130°C: Standard temperature rating for general-purpose motors.
155°C, 180°C, and 220°C: High-temperature ratings ideal for heavy-duty applications like EV motors.
Wires with higher temperature ratings are better suited for applications that involve continuous high currents, ensuring the motor performs at optimal levels without the risk of insulation failure.
Flexibility is another crucial factor when selecting winding wires for EVs. A more flexible wire is easier to wind around tight spaces, which is essential for the intricate design of EV motors.
Easier to Handle: Flexible enameled copper wire is easier to manipulate during the winding process, especially when creating tight coils in small spaces.
Enhanced Durability: Flexible wires are less likely to break during installation, reducing the risk of damage.
The voltage rating determines how much voltage the enameled copper wire can safely handle. This is important for EV motors, as high-voltage systems are often used to drive the electric vehicle.
A higher voltage rating ensures that the wire can handle higher voltages without breaking down. Copper's excellent conductivity ensures that enameled copper wire can carry large amounts of current without excessive power loss, making it ideal for high-efficiency motors.
Corrosion resistance is another critical factor, as EV winding wires are often exposed to harsh environments, including moisture, high humidity, and temperature fluctuations.
Enameled copper wire has inherent corrosion resistance due to its copper base and the enamel insulation. This makes it suitable for outdoor and industrial applications, where environmental factors can degrade other types of wire. The coating further protects the wire from chemical exposure, ensuring longevity and performance.
The mechanical strength of winding wires is vital in ensuring the wire remains intact during the winding process and throughout the operational life of the motor.
Durability: Stronger wires withstand mechanical stress during the winding and installation processes, preventing breakage.
Wear Resistance: Wires with higher mechanical strength are better equipped to handle wear and tear, ensuring long-term reliability.
While performance is crucial, cost is always a consideration in manufacturing. The cost of enameled copper wire can vary depending on factors such as material grade, insulation type, and temperature rating.
While enameled copper wire may have a higher upfront cost compared to alternatives like aluminum, its long-term durability and efficiency often justify the investment. Additionally, its wide availability makes it a practical choice for EV manufacturers globally.
Choosing the right enameled copper wire for EV winding applications is crucial for enhancing motor performance, efficiency, and durability. By considering the 9 key factors—material composition, wire gauge, insulation, temperature ratings, flexibility, voltage, corrosion resistance, mechanical strength, and cost—manufacturers can ensure optimal results in their EV motor designs. At Huzhou Fuda Electric Innovation Co., Ltd., we specialize in providing high-quality enameled copper wire solutions tailored to meet the specific needs of EV applications. Our products are engineered to offer superior conductivity, heat resistance, and long-lasting durability, ensuring that your motors operate at peak efficiency. Whether you are looking for custom specifications or seeking expert advice on the best wire for your project, our team is here to assist. Contact us today to learn more about how we can help optimize your EV motor design and ensure top-tier performance with our trusted winding wire solutions.
1. What makes enameled copper wire ideal for EV winding applications?
Enameled copper wire is favored for its superior electrical conductivity, high-temperature tolerance, and mechanical strength, making it perfect for EV motor windings.
2. What is the typical temperature rating required for EV winding wires?
Enameled copper wire for EV motors typically has temperature ratings of 155°C to 220°C to withstand high operating temperatures.
3. How do I choose the right wire size for my EV motor winding?
Select the wire gauge based on the motor’s power output and the space available in the winding. Thicker wires are for high-power applications, while thinner wires allow for tighter windings.
4. Is there a specific insulation type that works best for EV winding wires?
Insulations like polyurethane, polyester, and polyamide-imide are commonly used. These materials provide high thermal resistance and durability for long-lasting motor performance.
5. How does flexibility affect the winding process of EV motors?
Enameled copper wire’s flexibility makes it easier to handle and wind in tight spaces, improving efficiency and reducing breakage during installation.
6. What are the main environmental factors to consider when selecting EV winding wires?
Consider factors like humidity, temperature fluctuations, and corrosive environments. Enameled copper wire provides excellent corrosion resistance and durability in challenging conditions.
7. What is the cost-effectiveness of using enameled copper wire for EV winding applications?
While enameled copper wire can be more expensive upfront, its long-term efficiency, durability, and performance make it a cost-effective choice for EV motor applications.
