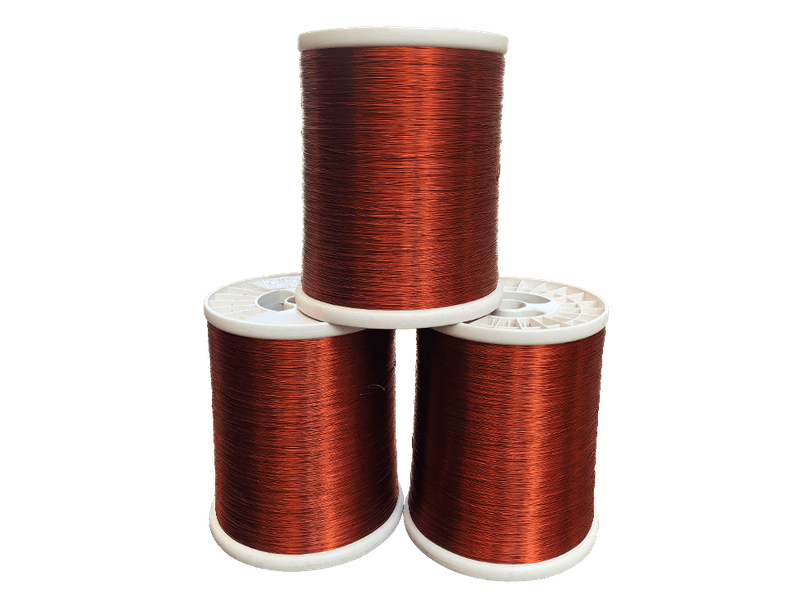

The UEW(QAL)155 CLASS enameled aluminum wire, with a diameter range of 0.15mm to 1.0mm, is designed for high-temperature applications up to 155°C. It features polyurethane insulation for excellent thermal and electrical performance, making it suitable for motors, transformers, and other demanding environments.
Availability: | |
---|---|
Quantity: | |
Trust Fu Da Ke Ji for enameled wires that deliver reliable performance. Our products are designed to withstand high temperatures and mechanical stress, making them ideal for a wide range of industrial applications.
size (R20)
Conductor nominal diameter / mm | Conductor tolerance / mm | Minimum film thickness / mm | Maximum outer diameter / mm | ||||
Level 1 | Level 2 | Level 3 | Level 1 | Level 2 | Level 3 | ||
0.250 | 0.004 | 0.017 | 0.032 | 0.048 | 0.281 | 0.297 | 0.312 |
0.280 | 0.004 | 0.018 | 0.033 | 0.050 | 0.312 | 0.329 | 0.345 |
0.315 | 0.004 | 0.019 | 0.035 | 0.053 | 0.349 | 0.367 | 0.384 |
0.355 | 0.004 | 0.020 | 0.038 | 0.057 | 0.392 | 0.411 | 0.428 |
0.400 | 0.005 | 0.021 | 0.040 | 0.060 | 0.139 | 0.459 | 0.478 |
0.450 | 0.005 | 0.022 | 0.042 | 0.061 | 0.491 | 0.513 | 0.533 |
0.500 | 0.005 | 0.024 | 0.045 | 0.067 | 0.544 | 0.566 | 0.587 |
0.560 | 0.006 | 0.025 | 0.047 | 0.071 | 0.606 | 0.630 | 0.653 |
0.630 | 0.006 | 0.027 | 0.050 | 0.075 | 0.679 | 0.704 | 0.728 |
0.710 | 0.007 | 0.028 | 0.053 | 0.080 | 0.762 | 0.789 | 0.814 |
0.800 | 0.008 | 0.030 | 0.056 | 0.085 | 0.855 | 0.884 | 0.911 |
0.900 | 0.009 | 0.032 | 0.060 | 0.090 | 0.959 | 0.989 | 1.018 |
1.000 | 0.010 | 0.034 | 0.063 | 0.095 | 1.062 | 1.094 | 1.124 |
1.120 | 0.011 | 0.034 | 0.065 | 0.098 | 1.184 | 1.217 | 1.248 |
1.250 | 0.013 | 0.035 | 0.067 | 0.100 | 1.316 | 1.349 | 1.381 |
1.400 | 0.014 | 0.036 | 0.069 | 0.103 | 1.468 | 1.502 | 1.535 |
1.600 | 0.016 | 0.038 | 0.071 | 0.107 | 1.670 | 1.706 | 1.740 |
1.800 | 0.018 | 0.039 | 0.073 | 0.110 | 1.872 | 1.909 | 1.944 |
2.000 | 0.020 | 0.040 | 0.075 | 0.113 | 2.074 | 2.112 | 2.148 |
2.240 | 0.022 | 0.041 | 0.077 | 0.116 | 2.316 | 2.355 | 2.392 |
2.500 | 0.025 | 0.042 | 0.079 | 0.119 | 2.578 | 2.618 | 2.656 |
2.800 | 0.028 | 0.043 | 0.081 | 0.123 | 2.880 | 2.922 | 2.961 |
3.150 | 0.032 | 0.045 | 0.084 | 0.127 | 3.233 | 3.276 | 3.316 |
3.550 | 0.036 | 0.046 | 0.086 | 0.130 | 3.635 | 3.679 | 3.721 |
4.000 | 0.040 | 0.047 | 0.089 | 0.134 | 4.088 | 4.133 | 4.176 |
4.500 | 0.045 | 0.049 | 0.092 | 0.138 | 4.591 | 4.637 | 4.681 |
5.000 | 0.050 | 0.050 | 0.094 | 0.142 | 5.093 | 5.141 | 5.186 |
Note 1: The minimum film diameter is required to be calculated with the minimum film thickness. Note 2: For the intermediate dimension of the nominal diameter of the conductor, the minimum film thickness corresponding to the nominal diameter of the larger conductor shall be taken. |
The UEW(QAL)155 CLASS Enameled Aluminum Round Wire boasts a range of technical specifications that make it ideal for high-performance electrical applications. Below are the key product parameters:
Temperature Class: Rated for 155°C, designed for long-term use in high-temperature environments.
Conductor Material: Aluminum conductor, offering excellent electrical conductivity and reduced weight compared to copper.
Coating Type: Polyurethane enamel coating, providing excellent insulation and thermal resistance.
Conductor Size Range: Available in sizes from 0.15mm to 1.0mm, catering to both fine and larger diameter applications.
Mechanical Strength: Robust mechanical properties, with the ability to endure bending and winding without damaging the enamel coating.
Electrical Insulation: Superior dielectric strength, capable of withstanding high voltages and preventing electrical leakage.
The UEW(QAL)155 CLASS Enameled Aluminum Round Wire stands out due to its remarkable performance characteristics that meet the demanding requirements of various electrical applications:
High-Temperature Resistance: With a temperature rating of 155°C, the wire ensures long-term stability and reliability even under prolonged exposure to elevated temperatures.
Durability and Longevity: The polyurethane enamel coating is resistant to moisture, solvents, and chemicals, which enhances the wire's resistance to environmental factors and extends its operational life.
Mechanical Flexibility and Strength: The wire’s flexibility allows it to undergo winding and bending processes without cracking, while the strong enamel coating ensures mechanical integrity.
Superior Electrical Insulation: The wire's enamel coating provides excellent electrical insulation, preventing breakdowns at high voltages and ensuring safe operation in electrical circuits.
Customization: Available in various conductor sizes and enamel thicknesses, it can be tailored to meet specific application needs.
The UEW(QAL)155 CLASS Enameled Aluminum Round Wire is versatile and can be used in a wide range of industries where high-performance electrical components are required:
Electric Motors: Ideal for winding in electric motors due to its excellent thermal resistance and mechanical strength.
Transformers: The wire's electrical insulation and temperature stability make it perfect for use in transformers, ensuring safety and efficiency.
Electronics Manufacturing: Suitable for fine wire applications in small-scale electronics, including coils, inductors, and other components that require precise winding and reliability.
Industrial Equipment: Used in various types of industrial electrical equipment that demand both high-temperature performance and durable electrical insulation.
Automotive and Aerospace: Due to its flexibility, strength, and resistance to harsh environments, it is also applicable in automotive and aerospace industries for high-performance wiring solutions.
Here are the key reasons why the UEW(QAL)155 CLASS Enameled Aluminum Round Wire is the best choice for your high-performance electrical needs:
High-Quality Materials: We use top-grade aluminum and durable polyurethane enamel coatings to ensure the wire performs well in extreme environments.
Customizable Solutions: We understand that different applications require specific solutions, and we offer customization in terms of conductor size, enamel thickness, and packaging to suit your unique requirements.
Reliability and Durability: With its resistance to high temperatures, chemicals, moisture, and mechanical stress, our wire is built to last, reducing maintenance costs and extending the operational lifespan of your equipment.
Industry Compliance: Our wires adhere to industry standards, ensuring that they are compatible with various electrical systems and manufacturing processes.
Comprehensive Support: We provide expert guidance and customer support to help you choose the right wire for your specific application, ensuring smooth integration into your manufacturing or operational processes.
Choose the UEW(QAL)155 CLASS Enameled Aluminum Round Wire for a reliable, high-performance solution that meets the demands of modern electrical systems.
Trust Fu Da Ke Ji for enameled wires that deliver reliable performance. Our products are designed to withstand high temperatures and mechanical stress, making them ideal for a wide range of industrial applications.
size (R20)
Conductor nominal diameter / mm | Conductor tolerance / mm | Minimum film thickness / mm | Maximum outer diameter / mm | ||||
Level 1 | Level 2 | Level 3 | Level 1 | Level 2 | Level 3 | ||
0.250 | 0.004 | 0.017 | 0.032 | 0.048 | 0.281 | 0.297 | 0.312 |
0.280 | 0.004 | 0.018 | 0.033 | 0.050 | 0.312 | 0.329 | 0.345 |
0.315 | 0.004 | 0.019 | 0.035 | 0.053 | 0.349 | 0.367 | 0.384 |
0.355 | 0.004 | 0.020 | 0.038 | 0.057 | 0.392 | 0.411 | 0.428 |
0.400 | 0.005 | 0.021 | 0.040 | 0.060 | 0.139 | 0.459 | 0.478 |
0.450 | 0.005 | 0.022 | 0.042 | 0.061 | 0.491 | 0.513 | 0.533 |
0.500 | 0.005 | 0.024 | 0.045 | 0.067 | 0.544 | 0.566 | 0.587 |
0.560 | 0.006 | 0.025 | 0.047 | 0.071 | 0.606 | 0.630 | 0.653 |
0.630 | 0.006 | 0.027 | 0.050 | 0.075 | 0.679 | 0.704 | 0.728 |
0.710 | 0.007 | 0.028 | 0.053 | 0.080 | 0.762 | 0.789 | 0.814 |
0.800 | 0.008 | 0.030 | 0.056 | 0.085 | 0.855 | 0.884 | 0.911 |
0.900 | 0.009 | 0.032 | 0.060 | 0.090 | 0.959 | 0.989 | 1.018 |
1.000 | 0.010 | 0.034 | 0.063 | 0.095 | 1.062 | 1.094 | 1.124 |
1.120 | 0.011 | 0.034 | 0.065 | 0.098 | 1.184 | 1.217 | 1.248 |
1.250 | 0.013 | 0.035 | 0.067 | 0.100 | 1.316 | 1.349 | 1.381 |
1.400 | 0.014 | 0.036 | 0.069 | 0.103 | 1.468 | 1.502 | 1.535 |
1.600 | 0.016 | 0.038 | 0.071 | 0.107 | 1.670 | 1.706 | 1.740 |
1.800 | 0.018 | 0.039 | 0.073 | 0.110 | 1.872 | 1.909 | 1.944 |
2.000 | 0.020 | 0.040 | 0.075 | 0.113 | 2.074 | 2.112 | 2.148 |
2.240 | 0.022 | 0.041 | 0.077 | 0.116 | 2.316 | 2.355 | 2.392 |
2.500 | 0.025 | 0.042 | 0.079 | 0.119 | 2.578 | 2.618 | 2.656 |
2.800 | 0.028 | 0.043 | 0.081 | 0.123 | 2.880 | 2.922 | 2.961 |
3.150 | 0.032 | 0.045 | 0.084 | 0.127 | 3.233 | 3.276 | 3.316 |
3.550 | 0.036 | 0.046 | 0.086 | 0.130 | 3.635 | 3.679 | 3.721 |
4.000 | 0.040 | 0.047 | 0.089 | 0.134 | 4.088 | 4.133 | 4.176 |
4.500 | 0.045 | 0.049 | 0.092 | 0.138 | 4.591 | 4.637 | 4.681 |
5.000 | 0.050 | 0.050 | 0.094 | 0.142 | 5.093 | 5.141 | 5.186 |
Note 1: The minimum film diameter is required to be calculated with the minimum film thickness. Note 2: For the intermediate dimension of the nominal diameter of the conductor, the minimum film thickness corresponding to the nominal diameter of the larger conductor shall be taken. |
The UEW(QAL)155 CLASS Enameled Aluminum Round Wire boasts a range of technical specifications that make it ideal for high-performance electrical applications. Below are the key product parameters:
Temperature Class: Rated for 155°C, designed for long-term use in high-temperature environments.
Conductor Material: Aluminum conductor, offering excellent electrical conductivity and reduced weight compared to copper.
Coating Type: Polyurethane enamel coating, providing excellent insulation and thermal resistance.
Conductor Size Range: Available in sizes from 0.15mm to 1.0mm, catering to both fine and larger diameter applications.
Mechanical Strength: Robust mechanical properties, with the ability to endure bending and winding without damaging the enamel coating.
Electrical Insulation: Superior dielectric strength, capable of withstanding high voltages and preventing electrical leakage.
The UEW(QAL)155 CLASS Enameled Aluminum Round Wire stands out due to its remarkable performance characteristics that meet the demanding requirements of various electrical applications:
High-Temperature Resistance: With a temperature rating of 155°C, the wire ensures long-term stability and reliability even under prolonged exposure to elevated temperatures.
Durability and Longevity: The polyurethane enamel coating is resistant to moisture, solvents, and chemicals, which enhances the wire's resistance to environmental factors and extends its operational life.
Mechanical Flexibility and Strength: The wire’s flexibility allows it to undergo winding and bending processes without cracking, while the strong enamel coating ensures mechanical integrity.
Superior Electrical Insulation: The wire's enamel coating provides excellent electrical insulation, preventing breakdowns at high voltages and ensuring safe operation in electrical circuits.
Customization: Available in various conductor sizes and enamel thicknesses, it can be tailored to meet specific application needs.
The UEW(QAL)155 CLASS Enameled Aluminum Round Wire is versatile and can be used in a wide range of industries where high-performance electrical components are required:
Electric Motors: Ideal for winding in electric motors due to its excellent thermal resistance and mechanical strength.
Transformers: The wire's electrical insulation and temperature stability make it perfect for use in transformers, ensuring safety and efficiency.
Electronics Manufacturing: Suitable for fine wire applications in small-scale electronics, including coils, inductors, and other components that require precise winding and reliability.
Industrial Equipment: Used in various types of industrial electrical equipment that demand both high-temperature performance and durable electrical insulation.
Automotive and Aerospace: Due to its flexibility, strength, and resistance to harsh environments, it is also applicable in automotive and aerospace industries for high-performance wiring solutions.
Here are the key reasons why the UEW(QAL)155 CLASS Enameled Aluminum Round Wire is the best choice for your high-performance electrical needs:
High-Quality Materials: We use top-grade aluminum and durable polyurethane enamel coatings to ensure the wire performs well in extreme environments.
Customizable Solutions: We understand that different applications require specific solutions, and we offer customization in terms of conductor size, enamel thickness, and packaging to suit your unique requirements.
Reliability and Durability: With its resistance to high temperatures, chemicals, moisture, and mechanical stress, our wire is built to last, reducing maintenance costs and extending the operational lifespan of your equipment.
Industry Compliance: Our wires adhere to industry standards, ensuring that they are compatible with various electrical systems and manufacturing processes.
Comprehensive Support: We provide expert guidance and customer support to help you choose the right wire for your specific application, ensuring smooth integration into your manufacturing or operational processes.
Choose the UEW(QAL)155 CLASS Enameled Aluminum Round Wire for a reliable, high-performance solution that meets the demands of modern electrical systems.
