Factors That Affect the Performance of Composite Enameled Copper Wire

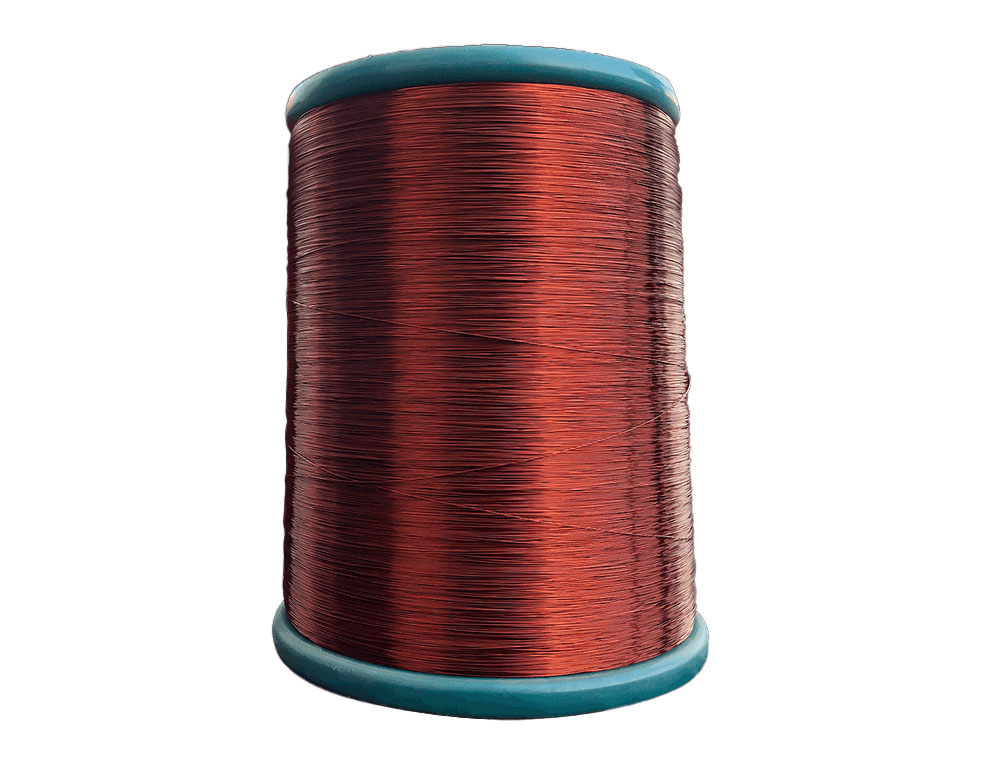

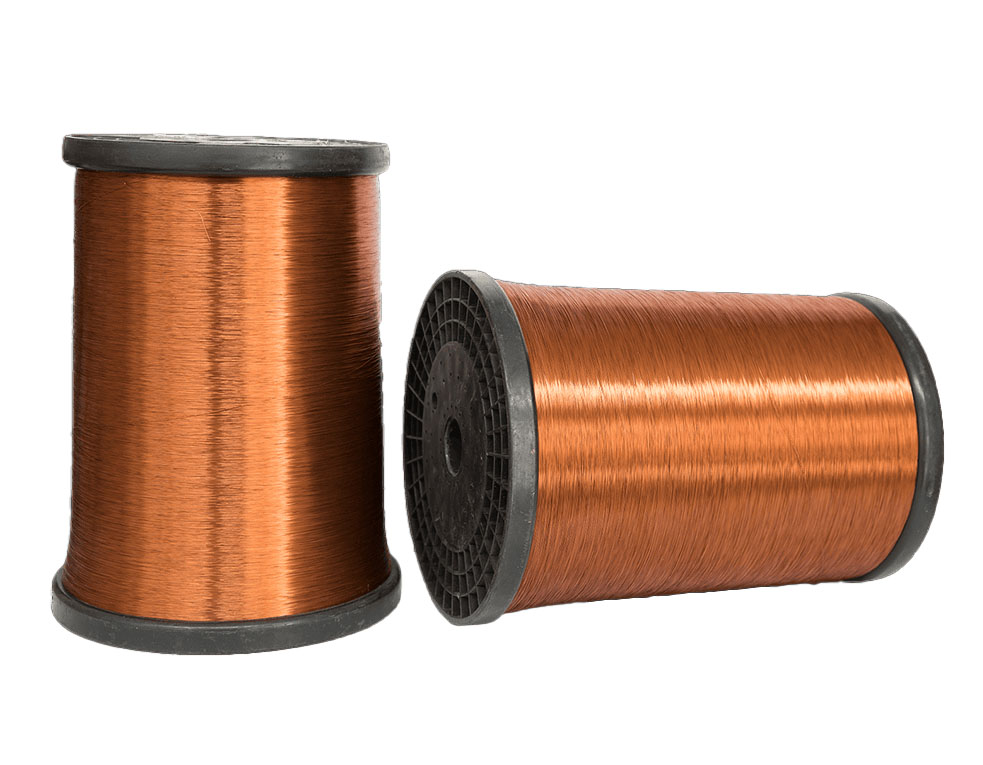

The composite enamelled copper wire is an electrical cable whose conductor is wrapped with a layer of insulation. It is used in winding wire of transformers, generators, motors, power cables, speakers, hard disk head actuator coils and electric guitar pickups. It is also known as magnet wire because it produces electromagnetic fields when coiled. The wire is typically made of copper (Cu) or aluminium (Al) and coated with a thin layer of insulation. In some cases the insulator is made of silver or nickel. Other insulators include fiberglass yarn with varnish, aramid paper, kraft paper and mica. Older insulators included cotton, silk and beeswax.

There are several types of electrical enameled copper wire available in the market, including UL listed XLPE, LSZH, FR, RTJ, FEP and PIB. Each type has different characteristics and applications. Choosing the right one for your application requires an understanding of the factors that influence performance, such as voltage rating, temperature class and outer diameter.

Enamels are also classified by their insulating properties. In addition to temperature class, these include the ability to withstand mechanical stress, flammability and resistance to chemicals. Some enamels can be rated for use in high-voltage applications, while others are suitable for low-voltage applications.

When choosing a composite enamelled copper wire, it is important to consider the manufacturer and product quality. The company should have a good track record and offer products that abide by global and local quality standards. It should also carry out rigorous tests to make sure that the products are safe for use. In addition, the company should provide customer support to answer any questions you may have.

The most common conductor materials for enameled copper wire are copper and aluminium. The former is more common because it offers excellent conductivity and windability, while the latter is preferred for low weight and larger diameters. GSAL also provides a variety of special conductor materials for specific requirements like lower weight or better bending performance metals.

Besides the conductor, other factors that can affect performance are the enamel coating and the temperature class of the wire. The higher the temperature class, the more stable and durable the wire will be. It should also have a good level of softening breakdown and abrasion resistance.

Another factor that can impact performance is the current density. Higher current densities can increase the risk of corrosion or melting. For this reason, it is important to ensure that the current density does not exceed the maximum allowable value.

When choosing a composite enamelled copper wire, consider the voltage rating and the outer diameter of the conductor. Also, be sure to choose a wire that has a high tensile strength and is not easily damaged. Lastly, look for a wire that is easy to work with. In addition to being durable, it should be easy to solder and weld. It should also have a good level resistance to chemicals and solvents.
